Home ProductsAutomatic Rebar Stirrup Bending Machine

4 - 12 Mm Steel Bar Automatic Rebar Stirrup Bending Machine For Straighten Bending And Cutting

I'm Online Chat Now

4 - 12 Mm Steel Bar Automatic Rebar Stirrup Bending Machine For Straighten Bending And Cutting

China 4 - 12 Mm Steel Bar Automatic Rebar Stirrup Bending Machine For Straighten Bending And Cutting supplier
4 - 12 Mm Steel Bar Automatic Rebar Stirrup Bending Machine For Straighten Bending And Cutting supplier 4 - 12 Mm Steel Bar Automatic Rebar Stirrup Bending Machine For Straighten Bending And Cutting supplier 4 - 12 Mm Steel Bar Automatic Rebar Stirrup Bending Machine For Straighten Bending And Cutting supplier 4 - 12 Mm Steel Bar Automatic Rebar Stirrup Bending Machine For Straighten Bending And Cutting supplier

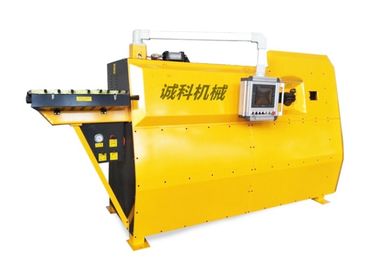

Large Image :  4 - 12 Mm Steel Bar Automatic Rebar Stirrup Bending Machine For Straighten Bending And Cutting

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-RB

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Product Name: 4 - 12 Mm Automatic Rebar Bending Machine Voltage: 380V
Raw Material: Steel Bar After-sales: Overseas Service Provided
Single Rebar Diameter: 4-12mm Warrany: 1 Year

4 - 12 mm Automatic Rebar Bending Machine straighten, bending and cutting



Description

The automatic steel wire bar bending machine/iron rebar stirrup bender is mainly used in construction, it can finish straightening, bending and cutting off by length at same time. Application steel bar: the cold rolled ribbed steel bar, hot rolled III grade steel bar, and cold rolled round steel bar, and hot rolled round steel plate.

information


1. There is only one step from a raw material to the forming products only one step.

2. High production efficiency, equivalent to twenty to thirty worker.

3. Easy operation, only need one worker, save manual work.

4. Save raw materials,Work in continuous forming almost unforeseen materials head loss

5. Small floor space. Save the work space, Can work in a narrow areas.


Advantages



Single Line Working Capacity(mm)
4-12mm
Double Line Working Capacity
4-10mm
Production efficiency (pcs/hour)
Single line: 1050pcs/h, Double line: 2100pcs/h
Max. bending angle
180°
Max. feeding speed(m/h)
9600
Motor power(kw)
28kw
Bending direction
Double directional
Straightening system
Arc straightening
Feeding system
Double wheel reverse direction feeding
Machine L*W*H(mm)
3200x1500x2250mm
Collector size(mm)
6000x650x500mm
Weight(kg)
2100KG


Used

Steel bar bending machine is an ideal equipment for bending threaded steel bar, smoothly steel bar, flat steel, square steel and angle steel. it is widely used in building, bridge, railway construction industry.
