Continuous Galvanized Wire Machine Production Speed 100 - 120m / Min High Efficiency

I'm Online Chat Now

Continuous Galvanized Wire Machine Production Speed 100 - 120m / Min High Efficiency

China Continuous Galvanized Wire Machine Production Speed 100 - 120m / Min High Efficiency supplier
Continuous Galvanized Wire Machine Production Speed 100 - 120m / Min High Efficiency supplier Continuous Galvanized Wire Machine Production Speed 100 - 120m / Min High Efficiency supplier Continuous Galvanized Wire Machine Production Speed 100 - 120m / Min High Efficiency supplier

Large Image :  Continuous Galvanized Wire Machine Production Speed 100 - 120m / Min High Efficiency

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-GE

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3 Sets
Contact Now
Detailed Product Description
Condition: New Wire Diameter: 2.5-4.0mm
Warranty: 1 Year After-sales: Overseas Service Provided
Voltage: 38V Product Name: Steel Wire Electro Galvanized Machine
High Light:

hot dip galvanizing machine

,

hot dip galvanizing equipment

Steel Wire Electro galvanized Machine Little Pollution High Efficiency





Description



1. Electrolytic acid pickling part: PP plats with thickness 10-15mm is use for tank body making, whole body is made in close type, acid resistant stainless steel made roller φ300mm, magnetic pump is used for liquid circulation, rectifier 500A/12V use for electrolytic acid pickling.

2. Galvanizing part: PP plats with thickness 10-15mm is use for tank body making, whole body is made in close type, acid resistant stainless steel made roller φ400mm, acid resistant pump is used for liquid circulation, rectifier 1000A/12V is used for zinc coating, anode is made of 4*45mm Ti plate. Towing motor is 5.5KW.

3. Baking part: Short circuit heating and voltage regulator for temperature adjusting are adopted, temperature control is very easy and have little energy consumption.

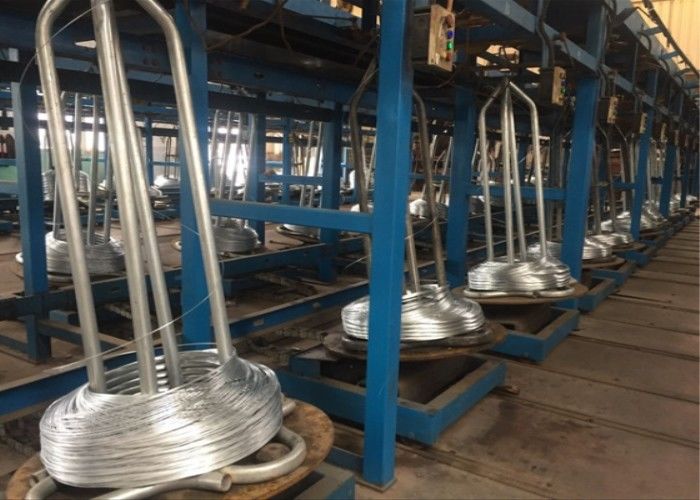

4. Wire take-up: φ550mm spools for wire take-up, torque motor 40N·m offer stable tension force control.

5. Total length of whole machine: 12m.

6. Production speed: 100-120m/min, speed can be adjusted by frequency conversion motor.



Features



The total length of production line is very short, no need large space of workshopNeeded little zinc block and chemical raw material, which can reduce needed circulating funds.The zinc coating quality of steel wire is also easy for control.Have little pollution, high efficiency, and little investment.One machine only need one operator



Specification



Steel Wire Electro galvanized Machine Little Pollution High Efficiency
1 Power source 380V/50HZ
2 Working diameter 2.0-5.0 mm
3 Galvanizing thickness Less than 300 g/m2
4 Galvanizing speed 50 m/min (thickness 285 g/m2)
80 m/min (thickness 170 g/m2)
100 m/min (thickness 60 g/m2)
5 Pay off type Vertical axis pay off
6 Diameter of pay off 550 mm
7 Take up type Coiler take-up
8 Diameter of take up 550 mm
9 Power capacity 90 kw
10 Length of equipment 28 m
