Steel Wire Electro Galvanized Wire Machine Zinc Coating Smoothly Wire Shinning

I'm Online Chat Now

Steel Wire Electro Galvanized Wire Machine Zinc Coating Smoothly Wire Shinning

China Steel Wire Electro Galvanized Wire Machine Zinc Coating Smoothly Wire Shinning supplier
Steel Wire Electro Galvanized Wire Machine Zinc Coating Smoothly Wire Shinning supplier Steel Wire Electro Galvanized Wire Machine Zinc Coating Smoothly Wire Shinning supplier Steel Wire Electro Galvanized Wire Machine Zinc Coating Smoothly Wire Shinning supplier Steel Wire Electro Galvanized Wire Machine Zinc Coating Smoothly Wire Shinning supplier

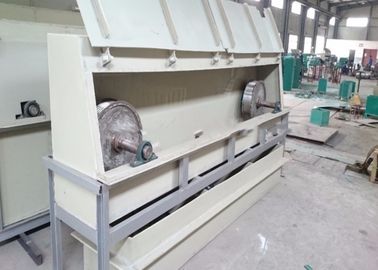

Large Image :  Steel Wire Electro Galvanized Wire Machine Zinc Coating Smoothly Wire Shinning

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-GE

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3 Sets
Contact Now
Detailed Product Description
Condition: New Wire Diameter: 1.5-4.0mm
Warranty: 1 Year After-sales: Overseas Service Provided
Voltage: 38V Product Name: Steel Wire Electro Galvanized Machine

Steel Wire Electro Galvanizing Line Zinc Coating Smoothly Wire Shinning





Description



A. Electrolytic acid pickling part: PP plats with thickness 10-15mm is use for tank body making, whole body is made in close type, acid resistant stainless steel made roller φ300mm, magnetic pump is used for liquid circulation, rectifier 500A/12V use for electrolytic acid pickling.

B. Galvanizing part: PP plats with thickness 10-15mm is use for tank body making, whole body is made in close type, acid resistant stainless steel made roller φ400mm, acid resistant pump is used for liquid circulation, rectifier 1000A/12V is used for zinc coating, anode is made of 4*45mm Ti plate. Towing motor is 5.5KW.

C. Baking part: Short circuit heating and voltage regulator for temperature adjusting are adopted, temperature control is very easy and have little energy consumption.

D. Wire take-up: φ550mm spools for wire take-up, torque motor 40N·m offer stable tension force control.

E. Total length of whole machine: 12m.

F. Production speed: 100-120m/min, speed can be adjusted by frequency conversion motor.



Features



1. The total length of production line is very short, no need large space of workshop

2. Needed little zinc block and chemical raw material, which can reduce needed circulating funds.

3. The zinc coating quality of steel wire is also easy for control.

4. Have little pollution, high efficiency, and little investment.

5. One machine only need one operator



Processing step



Vertical axis pay-off → Tension → Electrolytic degreasing → Neutralization → Water washing → Electrolytic acid pickling → Water washing → Thickness zinc coating → Water washing → Bright zinc coating → Water washing → Hot water washing → Baking → Coiler take-up



Specification



Wire Diameter
0.6mm-1.6mm and 1.6mm-4.0mm
Tensile Strength
30-50kg/mm2
Zinc Coating
10-30g/m2
Tank Material
PP material
Number Of Wires
10 - 40 wires or on your needs
