Black Iron Wire Hot Dip Galvanizing Equipment , High Speed Continuous Galvanizing Line

I'm Online Chat Now

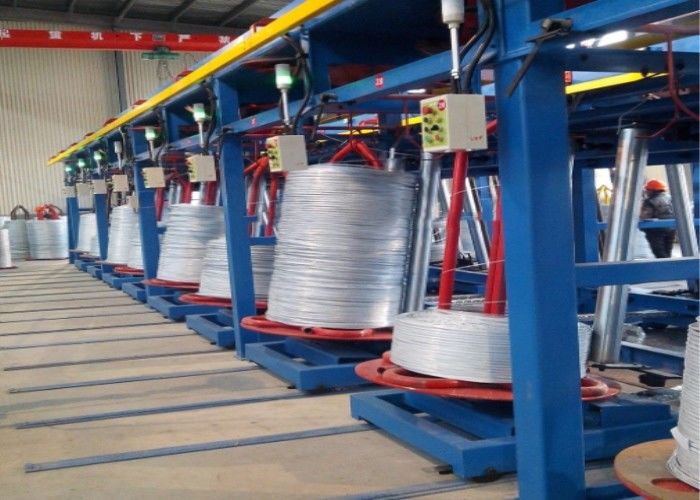

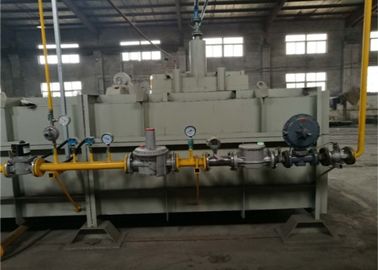

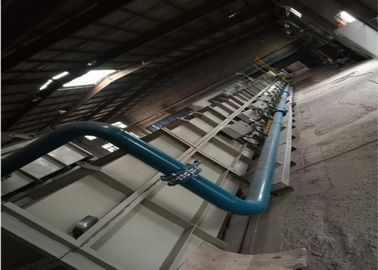

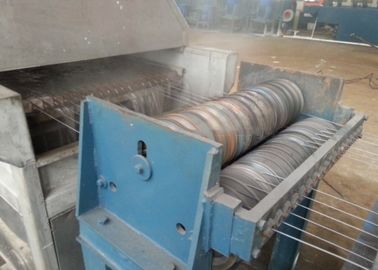

Black Iron Wire Hot Dip Galvanizing Equipment , High Speed Continuous Galvanizing Line

China Black Iron Wire Hot Dip Galvanizing Equipment , High Speed Continuous Galvanizing Line supplier
Black Iron Wire Hot Dip Galvanizing Equipment , High Speed Continuous Galvanizing Line supplier Black Iron Wire Hot Dip Galvanizing Equipment , High Speed Continuous Galvanizing Line supplier Black Iron Wire Hot Dip Galvanizing Equipment , High Speed Continuous Galvanizing Line supplier Black Iron Wire Hot Dip Galvanizing Equipment , High Speed Continuous Galvanizing Line supplier

Large Image :  Black Iron Wire Hot Dip Galvanizing Equipment , High Speed Continuous Galvanizing Line

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-GE

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3 Sets
Contact Now
Detailed Product Description
Condition: New Usage: Steel Wire Hot-dip Galvanizing
Warranty: 1 Year Coilor: As Required
Voltage: 38V Product Name: Hot Dip Galvanizing Iron Wire Production Machine
High Light:

continuous hot dip galvanizing line

,

hot dip galvanizing equipment

Automatic Hot Dip Galvanizing Iron Wire Production Machine Fast And stable





Description



The total length of production line is very short, no need large space of workshopNeeded little zinc block and chemical raw material, which can reduce needed circulating funds.The zinc coating quality of steel wire is also easy for control.Have little pollution, high efficiency, and little investment.One machine only need one operator

.

Production process:



pay off → acid pickling washing → water washing →electro galvanized → water cleaning→ drying → take up



Specification



1) Raw materials: Q195 or Q 235 (GB/T700-1988) or C10 (ISO683/11-1987)
2) Wire diameter: 1.6 - 3.5mm
3) Typical specification: 2.2mm
4) Weight of zinc coat: 60 - 300g/m²
5) Quantity of the lines: 32 lines
6) Power of product line: 428kW (horizontal type wire taking up machine),
476.4kW (vertical type taking up machine)
7) Speed of product line: 5 - 20m/min
8) Producing ability (daily output): max. 21T (3.5mm), min. 11T (1.6mm)
9) Daily work time: 24hrs
10) Size of product line: 90m x 3m
11) Weight of product line: about 40T
