Fast Speed Chain Link Fence Machine Simple Structure Wire Dimeter 2 - 4mm

I'm Online Chat Now

Fast Speed Chain Link Fence Machine Simple Structure Wire Dimeter 2 - 4mm

China Fast Speed Chain Link Fence Machine Simple Structure Wire Dimeter 2 - 4mm supplier
Fast Speed Chain Link Fence Machine Simple Structure Wire Dimeter 2 - 4mm supplier Fast Speed Chain Link Fence Machine Simple Structure Wire Dimeter 2 - 4mm supplier Fast Speed Chain Link Fence Machine Simple Structure Wire Dimeter 2 - 4mm supplier Fast Speed Chain Link Fence Machine Simple Structure Wire Dimeter 2 - 4mm supplier

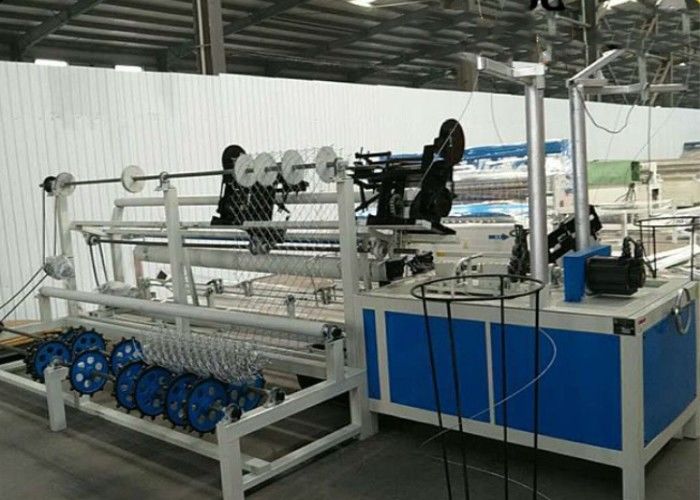

Large Image :  Fast Speed Chain Link Fence Machine Simple Structure Wire Dimeter 2 - 4mm

Product Details:

Place of Origin: Hebei China
Brand Name: Chengke
Certification: ISO
Model Number: CK - CL - 1Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: With plastic
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25
Contact Now
Detailed Product Description
Product Name: PLC Controlled Full Automatic Chain Link Fence Machine Warranty: 1 Year
Color: Customer's Requirment Condition: New
After Sales: Engineers Available To Service Overseas Wire Dimeter: 2-4mm
High Light:

chain link fence making machine

,

fence making equipment

PLC Controlled Full Automatic Chain Link Fence Machine Fast Speed Easy Operate





presentation



1. The chain link is automatically formed into rolls while the desired length is over.

2. Manufacturing chain link fences of different sizes.

3. Sides of chain link fence can be twisted or knuckled as required.

4. This machine is equipped with PLC (programmable Logic Controller), only one can operate it.

Working principle

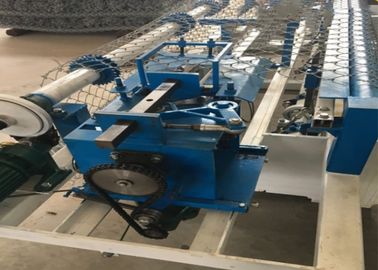

The wire is taken in from payoff stand and transported into dies where Diamond Size takes shape.

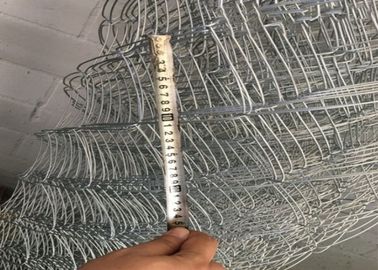

Finished wire is stitched as diamond holes.

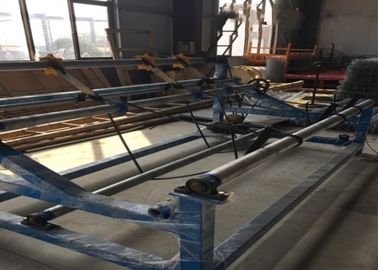

At last, the chain link is automatically rolled by receiving wheels.



Features



1. Simple structure in linear type ,easy in installation and maintation.

2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3. High pressure double crank to control the die opening and closing.

4. Running in a high automatization and intellectualization,no pollution



parameters



Max. width of mesh 4m
Max length of mesh 20m
Mesh hole 25-80mm
Wire dimeter 2-4mm
Motor power for winding 0.75kw
Motor power for parting tool 1.5kw
The output per minute For example: if the mesh is 50*50mm, width 2000mm, the output will be 2 square meters per minute.
Electric system

1.Japan Mitsubishi PLC origin

2.Servo motor

3.French Schneider (Low-voltage electrical system)

4.Electric & Machinery from Taiwan Teco Electronic

Control system PLC automatic controller
Power consumption 9.25kw



Usage



Chain Link Fence are widely use in animal husbandry, sports place, road greening defense, highway barrier, airport, port, residence, etc.
