Semi Automatic Chain Link Fence Machine Single Wire Sturdy Structure High Output

I'm Online Chat Now

Semi Automatic Chain Link Fence Machine Single Wire Sturdy Structure High Output

China Semi Automatic Chain Link Fence Machine Single Wire Sturdy Structure High Output supplier
Semi Automatic Chain Link Fence Machine Single Wire Sturdy Structure High Output supplier Semi Automatic Chain Link Fence Machine Single Wire Sturdy Structure High Output supplier Semi Automatic Chain Link Fence Machine Single Wire Sturdy Structure High Output supplier Semi Automatic Chain Link Fence Machine Single Wire Sturdy Structure High Output supplier

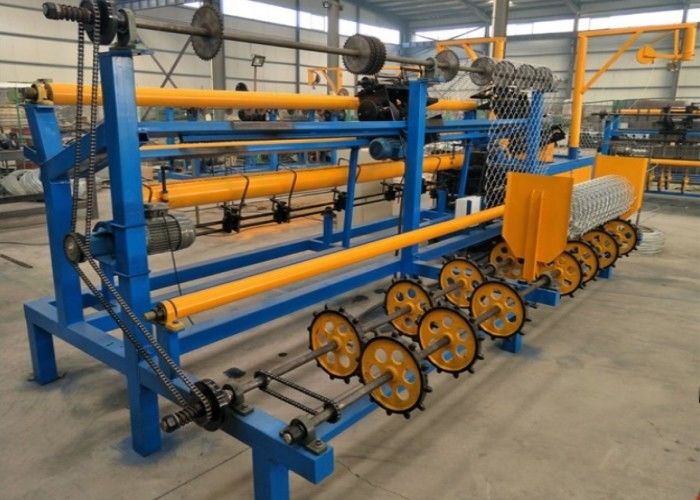

Large Image :  Semi Automatic Chain Link Fence Machine Single Wire Sturdy Structure High Output

Product Details:

Place of Origin: Hebei China
Brand Name: Chengke
Certification: ISO
Model Number: CK - CL - 1Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: With plastic
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25
Contact Now
Detailed Product Description
Product Name: Chain Link Fence Machine Wire Diameter: 2-4 Mm
Color: Customer's Requirment After Sales: Engineers Available To Service Overseas
Wire Dia: 1.5-4.5MM

Double Wire / Single Wire / Semi Automatic Chain Link Fence Machine





presentation



The spider metal wire diamond mesh weaving machine adopt the principle of weaving double wire from Germany, though the production efficiency is high and the quality of mesh sheet is reliable. The machine design is reasonable, control by the microcomputer and integration. Automatically complete the spinning, cut, working procedure and volume net, border closing. The advanced import craft, the domestically produced machinery price, which is the ideal choice for the vast users of diamond mesh.



Features



1. small size and fast speed.

2. high productivity;

3. low noise;

4. low cost.

5. the machine is easy to operate and control.

6. reliable performance, little mechanical failure and convenient maintenance.



Usage



Chicken fence, poultry fence and zoo enclosure, construction, mechanical equipment protection, sports ground fence, railway guard, green belt fence,etc.



parameters



Name
Double wire chain link fence machine
Wire Dia.
1.5mm-4.5mm
Mesh size
25*25mm-150*150mm
Mesh width
0.5-4.0m
Capacity
25-150m2/h
Voltage
380V/50HZ(customized)



Name
Single wire chain link fence machine
Wire Dia.
1.5-4.5mm
Mesh size
25*25mm-150*150mm
Mesh width
0.5-4.0m
Capacity
30-180m2/h
Voltage
380V/50HZ(customized)



Name
Semi automatic chain link fence machine
Wire Dia.
1.5-4.5mm
Mesh size
25*25mm-100*100mm
Mesh width
0.5-4.0m
Capactity
20-80m2/h
Voltage
380V/50HZ(customized)
