Product Details:
Payment & Shipping Terms:
|
| Type: | Fully Automatic | Woven Wire Diameter: | 1.5-4.5 MM |
|---|---|---|---|
| Power: | 5.5 KW | After Sales: | Engineers Available To Service Overseas |
| Weight: | 4 . 2 T | ||
| High Light: | chain link fence making machine,fence making equipment |
||

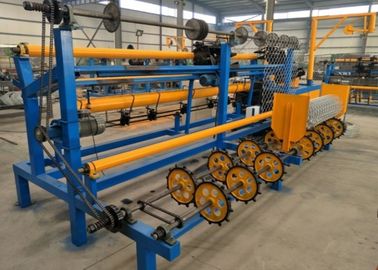

1.5 - 4.5 mm Fully Automatic Chain Link Fence Machine High Efficiency
presentation
The spider metal wire diamond mesh weaving machine adopt the principle of weaving double wire from Germany . though the production efficiency is high and the quality of mesh sheet is reliable . The machine design is reasonable , control by the microcomputer and integration . Automatically complete the spinning , cut , working procedure and volume net, border closing . The advanced import craft, the domestically produced machinery price, which is the ideal choice for the vast users of diamond mesh .
Features
1. It could work both of galvanized wire and pvc coated wire.
2. With alarm system for emergency matters occure.
3. Stop automaticlly.
4. With double wire feeding system.
5. It could adjust the mesh width automaticlly.
6. With high working efficiency and low noise.
performance
1. The production efficiency is about twice of the same species.
2. The fault is the lowest in the same species.
3. The machine is easy and simple to handle.The worker has the common mechanical knowledge can master it in one hour.
4. The loss of the raw materials of the same species is 5%-7%, while the JL-2000 chain link fence machine is nearly zero.
5. The electrical energy the chain fence link making machine can save is about20%.
6. It is suitable to all kinds of mild steel wires.
parameters
| Woven wire diameter | 1.5-4.5mm |
| Mesh size | 25*25-100*100mm |
| Mesh width | 3.0m |
| Production capacity | 50-150m2/h |
| Main machine power | 5.5kw |
| Weaving machine power | 1.5KW |
| Border wire treating machine power | 0.75kw*2 |
| Voltage | 380V/50HZ/Customized |
| Weight | 1.8T |
Used
Can be used to make chicken feed the ducks and geese rabbit and the zoo enclosure of machinery and equipment protection, highway guardrail, sports venues fence, the road green belts nets, supporting false roof coal mine The screen to make into a container of a box shape, fill the cages with stones and so on, can be used to protect and support seawall slope luqiao reservoir's flood control and flood fighting and other civil engineering materials Can also be used for handicrafts manufacturing, machinery and equipment of transport network, have strong impact resistance, corrosion resistance and beautiful features
