Product Details:
Payment & Shipping Terms:
|
| Product Name: | With Foot Clutch Efficient Electric Bending Machine | Power: | 7-10 |
|---|---|---|---|
| Frequency: | 50 HZ / 60 HZ | After-sales: | Overseas Service Provided |
| Voltage: | 380 V | Warrany: | 1 Year |
| High Light: | automatic steel bar bending machine,cnc wire bending machine |
||

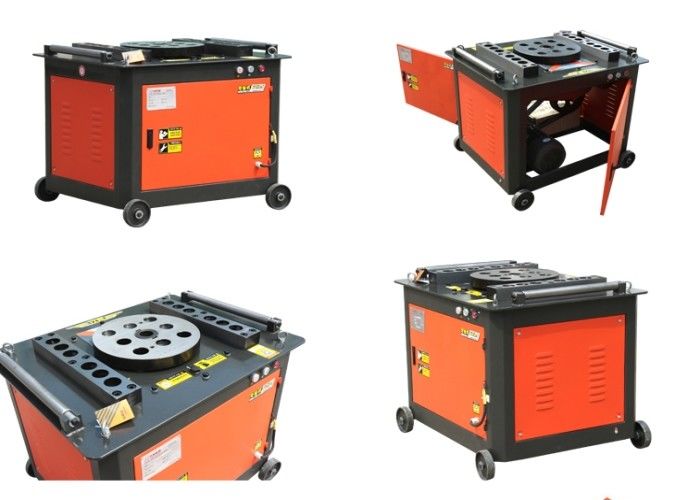

With Foot Clutch Efficient Electric Bending Machine For Multi - Angle Steel Molding
Description

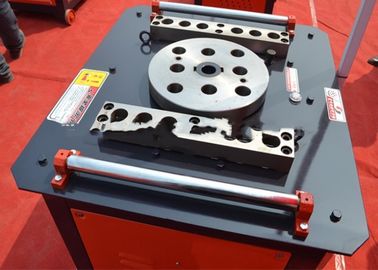

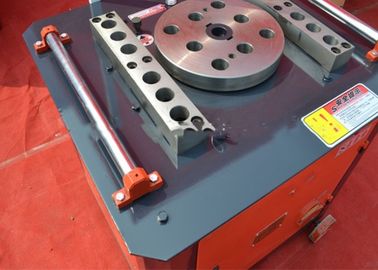

Steel bending machine, steel processing machinery is one of the working mechanism is a work in vertical shaft rotating horizontal disc, the reinforcing steel bar in the dotted line in the figure, supporting pin shaft fixed on the machine tool, the center pin on disc and the bent pin in work, when the rotary disk will bend to bend diameter steel bar, there are several holes in the working plate, to bending pin, can also be the diameter of the center pin changes accordingly
information

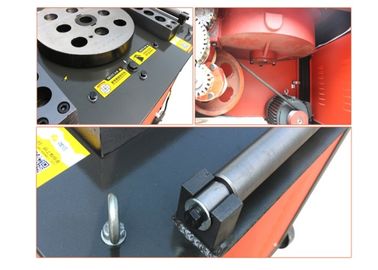

1. the latest heavy-duty gear box assembly, spindle is a maintenance free
2. Column and spool adopt high quality alloy steel, high temperature quenching treatment, higher hardness , more wear-resisting
3. increase heavy of disc and square steel, Never deformation, bend bar more accurately
4. enclosed electric cabinet, moistureproof, prevent dust, prevent leakage
5. thickening the dashboard, increase the integrity of the machine and longer service life
6. double-sided operation, so that people can operate in two directions conveniently and quickly
7.Low noise, minimum loss of power
Used
high quality rebar bending machine made by BC is an ideal equipment for bending threaded steel bar, smoothly steel bar, flat steel, square steel and angle steel. The machine is able to bend steel bar with diameter 6-42mm into your require and it is widely used inconstruction industry.
Advantages
| Model | GW40 | GW50 | GW60 | GW70 | |
| Bending Diameter | Plain carbon steel | ≤Φ40mm | ≤Φ50mm | ≤Φ60mm | ≤Φ70mm |
| Deformed steel | ≤Φ32mm | ≤Φ40mm | ≤Φ50mm | ≤Φ65mm | |
| Operation disc spec | Φ350mm | Φ450mm | Φ500mm | 600mm | |
| Axis Rotate speed | High speed | 9.63r/min | 2.685r/min | 8r/min | 7r/min |
| Low speed | 4.68r/min | 4r/min | 3r/min | ||
| Motor power | 3KW-4p | 4KW-4p | 5.5KW-6p | 5.5kw-8p | |
| Working voltage | 220V~440V | 220V~440V | 220V~440V | 220V~440V | |
| Motor Rotate speed | 1440r/min | 1440r/min | 720r/min | 360r/min | |
| Overall Dimension | 930x730x710mm | 1060×810×720mm | 1080×850×740mm | 1.2x1x0.95 | |
| Whole Weight | 350kg | 450kg | 680kg | 980kg | |
| Above parameter just for your reference,if any other special demands,can be customized design based on your demands. | |||||
