| Condition: | New | Speed: | 18-25m/min |
|---|---|---|---|
| Voltage: | 380v | Product Name: | Wire Rod Straightening Machine |
| Warranty: | 1 Year | After-sales: | Overseas Service Provided |
| High Light: | wire straightening and cutting machine,wire straightener and cutter |
||

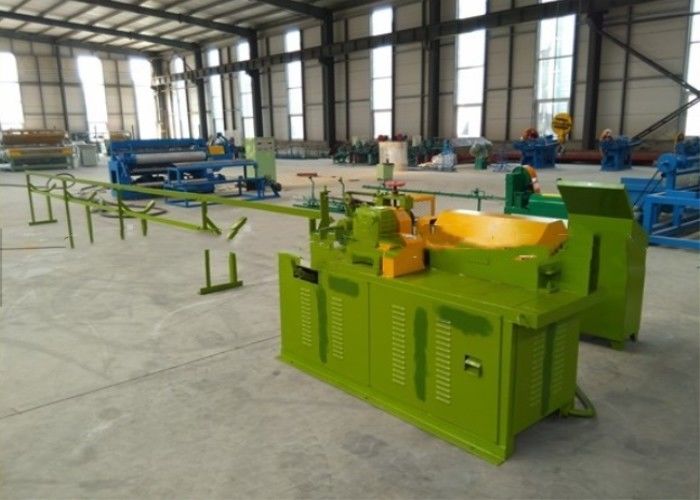

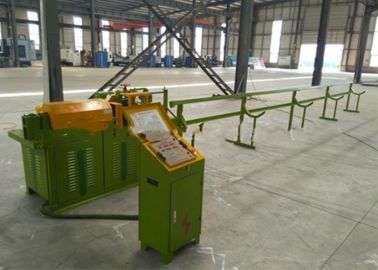

Hydraulic Cut Off Low Noise CNC Steel Rod Straightening And Cutting Machine
description
1. Wire straightener and cutting machine can straighten and cut stainless steel wire, aluminum wire, cold-drawing wire and steel wire.
2. This kind of machine wire diameter is from 1.5 to 12mm.
3. The length could adjust according to customers demand. It is used in straightening-cutting stainless steel wire, aluminum wire, cold-drawing wire, and steel wire with plastics.
4. This machine has many advantages, such as neat cutting mouth, less error and good functions.
Features
1. Different lengths and numbers are remembered by the machine;
2. Hydraulic cut off, high accuracy but low noise;
3. Covering Less Space,convenient to move and install ;
4. Running steadily, easy to maintain, exchange parts are available;
5. Alter number and length without shutting;
6. Number of machines can be operated by one worker at a time.
parameters
| Model | Unit | CK1.5-3.5 | CK2-5 | CK3-6 | CK4-8 | CK4-12 | CK5-12 |
| wire diameter | mm | 1.5-3.5 | 2.0-5.0 | 3.0-6.0 | 4.0-8.0 | 4.0-12 | 5.0-12 |
| Cutting length | mm | 30-2000 | 30-6000 | 30-6000 | 200-6000 | 200-6000 | 600-12000 |
| Cut error | mm | +/- 1 | +/- 2 | +/- 3 | +/- 4 | +/- 5 | +/- 10 |
| Speed | m/min | 25 | 30 | 30 | 35 | 30 | 45 |
| Straight motor | kw | 1.5 | 1.5 | 2.2 | 4 | 7.5 | 11 |
| Cut motor | kw | 0.75 | 0.75 | 0.75 | 3 | 4 | 4 |
SALES SERVICE
| 1. Machine to be installed and commissioned by our technicians. We can send our technician to install the machine accordingly if the buyer need. |
| 2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD100/person/day for salary. |
| 3. Technician: Normally need one or two technician. |
| 4 Training time: one week (contains the time of installation and adjustment) |
