Deformed Steel Bar Wire Rod Straightening Machine 1.6mm - 6mm Wire Diameter

I'm Online Chat Now

Deformed Steel Bar Wire Rod Straightening Machine 1.6mm - 6mm Wire Diameter

China Deformed Steel Bar Wire Rod Straightening Machine 1.6mm - 6mm Wire Diameter supplier
Deformed Steel Bar Wire Rod Straightening Machine 1.6mm - 6mm Wire Diameter supplier Deformed Steel Bar Wire Rod Straightening Machine 1.6mm - 6mm Wire Diameter supplier Deformed Steel Bar Wire Rod Straightening Machine 1.6mm - 6mm Wire Diameter supplier Deformed Steel Bar Wire Rod Straightening Machine 1.6mm - 6mm Wire Diameter supplier

Large Image :  Deformed Steel Bar Wire Rod Straightening Machine 1.6mm - 6mm Wire Diameter

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-WS

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Condition: New Speed: 120 M/min
Voltage: 380v Product Name: Deformed Steel Bar Straightening Cutting Machine
Warranty: 1 Year After-sales: Overseas Service Provided
High Light:

wire straightening and cutting machine

,

wire straightener and cutter

Deformed Steel Bar Straightening Cutting Machine Running Steadily , Easy To Maintain


description

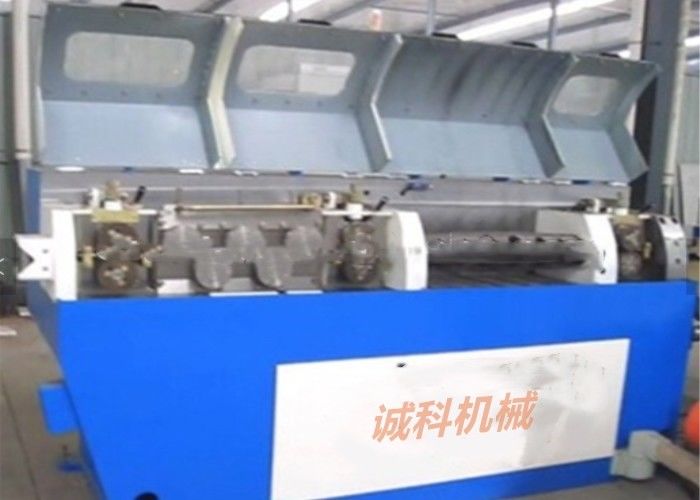

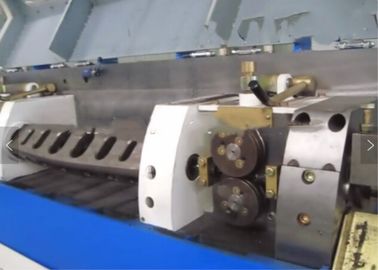

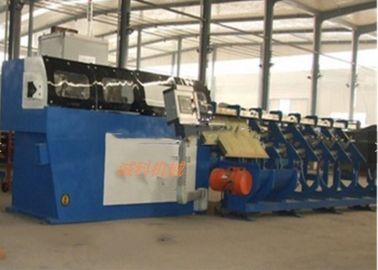

The steel straightening and cutting machine is used to straightening wire or rebar, and then cut it into the needed length. It can do a prepare work for the wire mesh welding machine.

Features

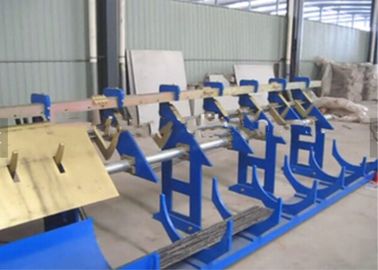

1. The machine has a secondary blanking device. When do packing and moving of the cut-to-length wire, it will not affect the machine normal working condition.

2. The cut-to-length wire will be aligned automatically to avoid the problem of disorder.

3. Straightening speed and traction speed of the machine are all CNC controlled and stepless adjustable. Users can adjust them to get best straightness according to different wire conditions.

4. The machine uses fully enclosed protective cover. Every part of the cover is able to be opened or closed separately. Moving parts all have warning color notice and special measures for security.

5. The machine is equipped with dust recycle interface. Dost absorption and filtration system could be added according to customers requirement.

6. There is high pressure dust blowing system and spray lubrication system at the wire entrance. Wire surface status could be improved accordingly.



parameters



Deformed Steel Bar Straightening Cutting Machine Running Steadily , Easy To Maintain
Wire diameter Φ1.6mm-φ6mm
Cutting length 0.05m-6m
Cutting tolerance ±1mm
Straightening Speed 0-180 m/min
Cutting speed 10 times/second
Power requirement 380V 50Hz 7.7KVA
Total power 7.7kw/h
Electricity consumption 3 kw/h —7kw/h
Compressed air DO NOT NEED
Wire material Low carbon steel wire φ1.6mm-φ6mm
Wire surface Plain, galvanized, or ribbed wire
Wire wastage 0%
Labor needed 1 worker
Temperature requirement -30℃—— +40℃
