CNC Electric Wire Rod Straightening Machine Hydraulic Cut Off High Accuracy

I'm Online Chat Now

CNC Electric Wire Rod Straightening Machine Hydraulic Cut Off High Accuracy

China CNC Electric Wire Rod Straightening Machine Hydraulic Cut Off High Accuracy supplier
CNC Electric Wire Rod Straightening Machine Hydraulic Cut Off High Accuracy supplier CNC Electric Wire Rod Straightening Machine Hydraulic Cut Off High Accuracy supplier CNC Electric Wire Rod Straightening Machine Hydraulic Cut Off High Accuracy supplier CNC Electric Wire Rod Straightening Machine Hydraulic Cut Off High Accuracy supplier

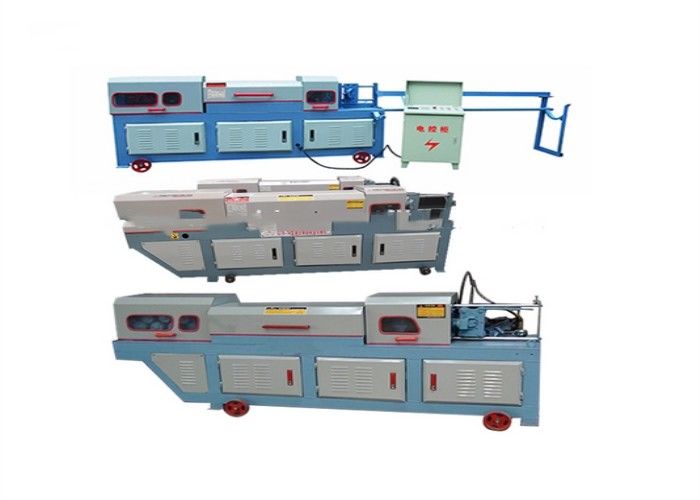

Large Image :  CNC Electric Wire Rod Straightening Machine Hydraulic Cut Off High Accuracy

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-WS

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Condition: New Wire Length: 4-14M
Voltage: 220V/380V/415V/440V Product Name: Wire Rod Straightening Machine
Warranty: 1 Year After-sales: Overseas Service Provided

Hydraulic Cut Off Low Noise CNC Steel Rod Straightening And Cutting Machine





description



stainless steel wire straightening machine is used to straightening galvanized wire or rebar,and then cut it into the needed length.It can do a prepare work for the wire mesh welding machine.So it is widely accepted to the factory who is dealing wire wires and wire mesh.Also widely used in construction area.



Features



1. Different lengths and numbers are remembered by the machine;

2. Hydraulic cut off, high accuracy but low noise;

3. Covering Less Space,convenient to move and install ;
4. Running steadily, easy to maintain, exchange parts are available;

5. Alter number and length without shutting;
6. Number of machines can be operated by one worker at a time.



parameters



Model CK4-10 CK4-12 CK6-14
Straightening Dimension Φ4-Φ10mm Φ4-Φ12mm Φ6-Φ14mm
Wire Traction Speed 25-30m/min 45m/min 55m/min
Wire Cut Lengths 100-2500mm(can add) 800-9000mm(can add) 800-8000mm(can add)
Cutting Length Error 0 ±1mm ±15mm
Wire Straightening Degrees ±2mm/m ±2mm/m ±2mm/m
Traction Motor 7.5KW 2.2KW-6P 4KW-6p
Straightening Motor 7.5KW-4P 11KW-4P
Cutting Motor 4KW-4P 4KW/5.5kw-4p
Voltage 220V/380V/415V/440V,50/60HZ,single or double or three phase
