Smooth Incision Steel Wire Straightening Cutting Machine , Cold Wire Drawing Rebar Straightening Machine

I'm Online Chat Now

Smooth Incision Steel Wire Straightening Cutting Machine , Cold Wire Drawing Rebar Straightening Machine

China Smooth Incision Steel Wire Straightening Cutting Machine , Cold Wire Drawing Rebar Straightening Machine supplier
Smooth Incision Steel Wire Straightening Cutting Machine , Cold Wire Drawing Rebar Straightening Machine supplier Smooth Incision Steel Wire Straightening Cutting Machine , Cold Wire Drawing Rebar Straightening Machine supplier Smooth Incision Steel Wire Straightening Cutting Machine , Cold Wire Drawing Rebar Straightening Machine supplier Smooth Incision Steel Wire Straightening Cutting Machine , Cold Wire Drawing Rebar Straightening Machine supplier

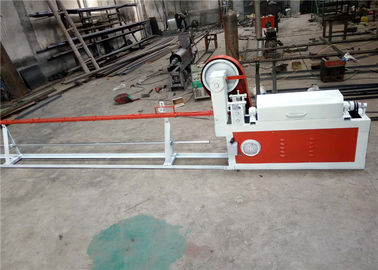

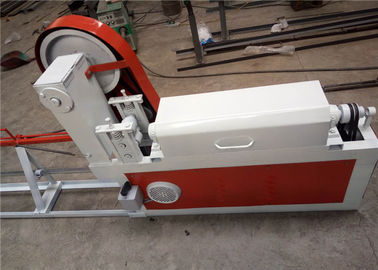

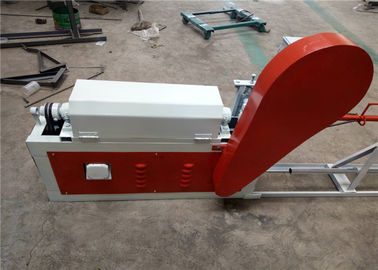

Large Image :  Smooth Incision Steel Wire Straightening Cutting Machine , Cold Wire Drawing Rebar Straightening Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-WS

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Product Name: Wire Rod Straightening Machine Wire Length: 4-12M
STRAIGHTENING SPEED: 30times/min Cutting Thickness: 3-8MM
Warranty: 1 Year After-sales: Overseas Service Provided
High Light:

wire straightening and cutting machine

,

steel bar straightening and cutting machine

Wire Rod Straightening Machine Smooth Incision , Tiny Error And Durable Machine





description



Operation principle of the straight wire machine: the speed of the motor is driven by the belt drive, which makes the straightening tube rotate at high speed, and the steel bar through the straightening tube is straightened, and the rust skin of the steel surface is removed by the straightening mold.
By the motor through another pair deceleration belt drive and gear reducer, on the one hand, drive two transfer roller, traction bar movement forward, drive the crank pulley on the other hand, under the hammer head movement when steel bar until the scheduled length, hammer hammer head, cutting the steel, cut off the steel into the rack, due to the spring action, knife back in situ, to complete a cycle



Features



1. for stainless steel,Cold wire drawing, wire etc.,

2, reasonable structure,easy to operate,safty,smooth incision,tiny error,durable machine

3. Application :the straightened wire is used to duck cages,chicken cages,for industries,all kinds of steel wire

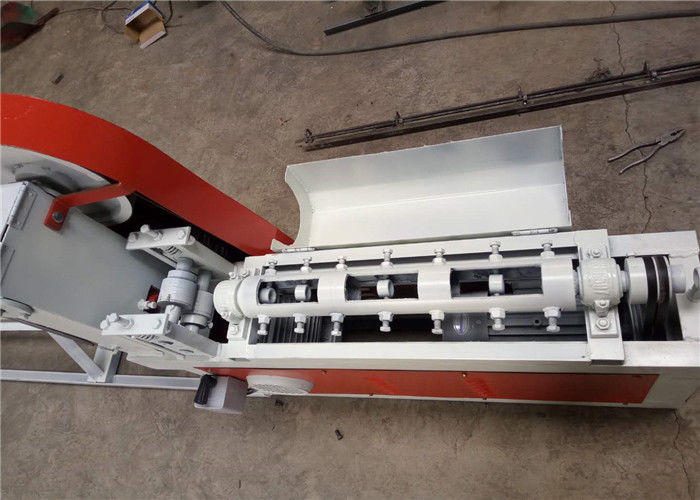

4. The structure of the machine is adjusted by the high-speed rotor rotation angle of straight wire mode, to the effect of straightening. Has a modulation effect is good, cutting accurate, easy to learn



parameters

Model CK1-3 CK2-5 CK3-6 CK4-8
Straightening Dimension Φ1-Φ3mm Φ2-Φ5mm Φ3-Φ6mm Φ4-Φ8mm
Wire Traction Speed 25-30m/min 25-40m/min
Wire Cut Lengths 100-3000mm(can add) 100-3000mm(can add)
Cutting Length Error 0 0 0 0
Straightening Motor 1.5KW 2.2KW 3KW
Cutting Motor 0.75KW 0.75KW 1.1KW
Voltage 220V/380V/415V/440V,50/60HZ,single or double or three phase
