High Speed Wire Rod Straightening Machine High Yield And Low Consumption

I'm Online Chat Now

High Speed Wire Rod Straightening Machine High Yield And Low Consumption

China High Speed  Wire Rod Straightening Machine High Yield And Low Consumption supplier
High Speed  Wire Rod Straightening Machine High Yield And Low Consumption supplier High Speed  Wire Rod Straightening Machine High Yield And Low Consumption supplier High Speed  Wire Rod Straightening Machine High Yield And Low Consumption supplier High Speed  Wire Rod Straightening Machine High Yield And Low Consumption supplier

Large Image :  High Speed Wire Rod Straightening Machine High Yield And Low Consumption

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-WS

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Product Name: Structure Steel Bars Straightening And Cutting Machine Wire Length: 4-12M
STRAIGHTENING SPEED: 50times/min Cutting Thickness: 3-8MM
Warranty: 1 Year After-sales: Overseas Service Provided

Structure Steel Bars Straightening And Cutting Machine High Yield And Low Consumption





description

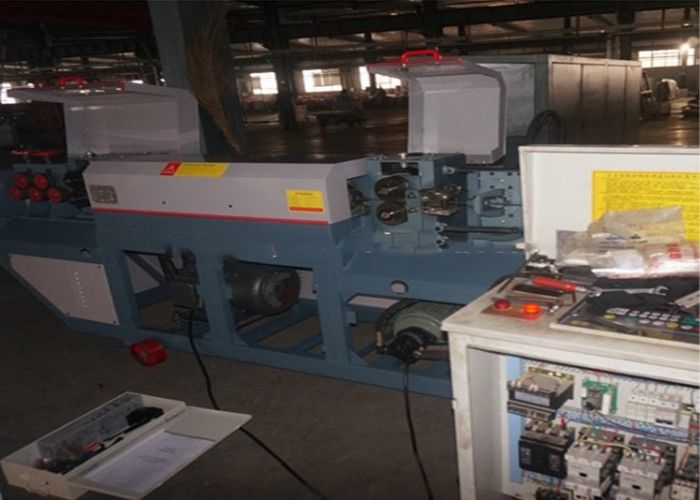

Straight wire machine, nickname wire straightening machine, straightening cutting machine, mainly for all kinds of metal wire automatic straightening cutting, including flat wire straightening cutting, building tie wire straightening cutting, galvanized wire straightening cutting, stainless steel wire straightening cutting wire straightening cutting off, etc Used for straightening and cutting off steel under 14 mm in diameter, cut the length according to customer requirements Adjustable straight cut stainless steel wire aluminum wire cold wire drawing package plastic wire, etc Incision small error performance is good



Features

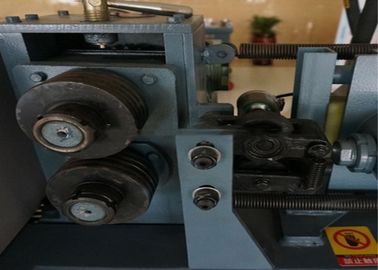

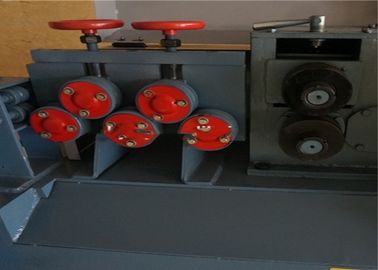

Operation principle of the straight wire machine: the speed of the motor is driven by the belt drive, which makes the straightening tube rotate at high speed, and the steel bar through the straightening tube is straightened, and the rust skin of the steel surface is removed by the straightening mold.
By the motor through another pair deceleration belt drive and gear reducer, on the one hand, drive two transfer roller, traction bar move forward, on the other hand wheel drives the crank, the hammer head down the movement When steel bar until the scheduled length, hammer hammer head, cutting the steel, cut off the steel bar in the rack, due to the spring action, knife back in situ, to complete a cycle



parameters



Type CK6-14 CK-4-12
Straightening Dimension Φ6-Φ14 Φ4-Φ12
Wire Traction Speed 55m/min 55m/min
Wire Cut Lengths 800-8000mm(can add) 800-8000mm(can add)
Cutting Length Error ±15mm ±15mm
Wire Straightening Degrees ±2mm/m ±2mm/m
Traction Motor 3KW-6p 2.2KW-6p
Straightening Motor 11KW-4P 7.5KW-4P
Cutting Motor 5.5KW-4p 4KW-4p
