Round Rebar Wire Rod Straightening Machine Speed 38m / Min Wire Length 0.8 - 12M

I'm Online Chat Now

Round Rebar Wire Rod Straightening Machine Speed 38m / Min Wire Length 0.8 - 12M

China Round Rebar Wire Rod Straightening Machine Speed 38m / Min Wire Length 0.8 - 12M supplier
Round Rebar Wire Rod Straightening Machine Speed 38m / Min Wire Length 0.8 - 12M supplier Round Rebar Wire Rod Straightening Machine Speed 38m / Min Wire Length 0.8 - 12M supplier Round Rebar Wire Rod Straightening Machine Speed 38m / Min Wire Length 0.8 - 12M supplier Round Rebar Wire Rod Straightening Machine Speed 38m / Min Wire Length 0.8 - 12M supplier

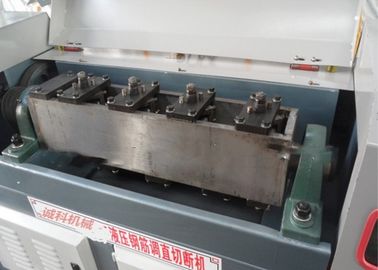

Large Image :  Round Rebar Wire Rod Straightening Machine Speed 38m / Min Wire Length 0.8 - 12M

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-WS

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Condition: New Wire Length: 0.8-12M
Color: 38m/min Cutting Thickness: 5-12MM
Warranty: 1 Year After-sales: Overseas Service Provided
High Light:

wire straightening and cutting machine

,

steel bar straightening and cutting machine

5 - 12mm Wire Rod Straightening And Cutting Machine Automatic Fall Silk





description


1. cut off the steel bar length without error,

2. double pull type,

3. The last mile of reinforcement pull out so far,

4 buildings adopt tungsten steel die,

5. Product wire the ball at the end of the mold, bring up will not damage the surface of steel



Features



1. Accurate cutting precision : this is the outstanding advantage of our machine and the tolerance of cutting length is ±1mm.

2. Accurate straightening precision: straightened wire precision is ≤2mm/m.

3. Finished wire length can be as short as 0.8m which is much appliable for short wire straightening.

4. Wide range application: wide range raw material is suitable for this kind machine such as sooth round steel, cold ribbed steel or

deformed steel bar. We can recommend the machine according to the raw material.

5. Easy operation: the machine is fully automatic and be controlled by PLC systerm and only one person is enough for operation.

6. Smooth working process: precise machine part and strict quality control making sooth working for long time.



parameters



No. Item Specifics
1 capacity Φ6-14mm round steel
2   Φ6-12mm corrugated steel
3 cutting length 500mm to up
4 cutting error ±1cm
6 speed 38m/min
7 straighten motor power 11KW
  traction motor 5.5KW
8 voltage 380V/50HZ/3phase
9 straightening degree ±2mm/m
10 whole weight 1500KG
