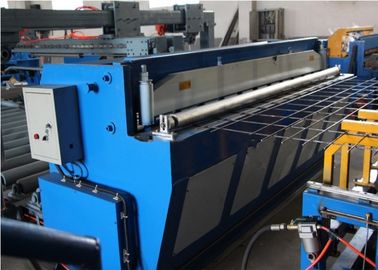

Resistance Wire Mesh Spot Welding Machine , Reinforcing Steel Bar Mesh Welding Machine

I'm Online Chat Now

Resistance Wire Mesh Spot Welding Machine , Reinforcing Steel Bar Mesh Welding Machine

China Resistance Wire Mesh Spot Welding Machine , Reinforcing Steel Bar Mesh Welding Machine supplier
Resistance Wire Mesh Spot Welding Machine , Reinforcing Steel Bar Mesh Welding Machine supplier Resistance Wire Mesh Spot Welding Machine , Reinforcing Steel Bar Mesh Welding Machine supplier Resistance Wire Mesh Spot Welding Machine , Reinforcing Steel Bar Mesh Welding Machine supplier Resistance Wire Mesh Spot Welding Machine , Reinforcing Steel Bar Mesh Welding Machine supplier

Large Image :  Resistance Wire Mesh Spot Welding Machine , Reinforcing Steel Bar Mesh Welding Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-RM-2500Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: plastic warps
Delivery Time: 15 Workdays
Payment Terms: T/T, L/C, Western Union
Supply Ability: 25 Sets/Month
Contact Now
Detailed Product Description
Product Name: Ribbed Steel Bar Electric Resistance Welding Machine Width: 2m 2.5m 3m (custormized)
Wire Diameter: 5-12mm Welding Electrode: 24pcs(custormized)
After-sales: Engineers Available To Service Machinery Overseas Mesh Sizerial: Reinforcing Bar
High Light:

automatic wire mesh welding machine

,

mesh panel welding machine

Ribbed Steel Bar Electric Resistance Welding Machine For Building Roof Wire Net



description


 It adopts synchronous controlling technology--welding time and sub control welding are both constituted by PLC digital programming system.

There are two kinds of input panel:touch screen and button.The operation is more intelligent,reasonable.With the merits of packing down tightly at one time,and welding is divided to many times


Features

The biggest advantage is:different distance between weft wire.It adopts the new type high-efficieny welding transformer,shifting gear can be divided into eight levels,which has expanded the scope of welding wire diameter.
Performance:easy operation,high flexibility,the output is a fews times of the artificical single point welding machine.

Specification



Wire diameter 4.0-8.0mm/5-12mm Line wire form from the coil
Weft wire distance 50-200mm Weft wire form from the coil
Line wire distance 50-300mm Rated voltage 380V
Welding net width 1600mm Rated power 125KVA×8
