380 Voltage Reinforcing Mesh Welding Machine , Fully Automatic Welded Wire Mesh Machine

I'm Online Chat Now

380 Voltage Reinforcing Mesh Welding Machine , Fully Automatic Welded Wire Mesh Machine

China 380 Voltage Reinforcing Mesh Welding Machine , Fully Automatic Welded Wire Mesh Machine supplier
380 Voltage Reinforcing Mesh Welding Machine , Fully Automatic Welded Wire Mesh Machine supplier 380 Voltage Reinforcing Mesh Welding Machine , Fully Automatic Welded Wire Mesh Machine supplier 380 Voltage Reinforcing Mesh Welding Machine , Fully Automatic Welded Wire Mesh Machine supplier 380 Voltage Reinforcing Mesh Welding Machine , Fully Automatic Welded Wire Mesh Machine supplier

Large Image :  380 Voltage Reinforcing Mesh Welding Machine , Fully Automatic Welded Wire Mesh Machine

Product Details:

Place of Origin: Anping Hebei
Brand Name: Chengke
Certification: ISO
Model Number: CK-RM-2500

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: no
Delivery Time: 15 work days
Payment Terms: L/C, T/T
Supply Ability: 15
Contact Now
Detailed Product Description
Product Name: PLC Control Hydraulic Pressure Reinforcing Mesh Welding Machine Warranty: 1 Year
Voltage: 380v After-sales: Engineers Available To Service Machinery Overseas
Condition: New Wire Diameter: 6-12mm

PLC control Hydraulic pressure Reinforcing Mesh Welding Machine





Specification



Automatic Building Concrete Rebar Mesh Welding Machine Electrodes Water Cooling
Item CK-RM-2500 CK-RM-2900 CK-RM-3300
Number of Electrodes 24 28 32
Max. Mesh Width 2500mm 2900mm 3300mm
Wire Diameter 3-8mm&5-12mm 5-12mm 5-12mm
Mesh Length 2-12m 2-12m 2-12m
Cross Wire Space ≥50mm ≥50mm ≥50mm
Line Wire Space 100-200mm 100-200mm 100-200mm
Electric Capacity ≥315KVA ≥315KVA ≥315KVA
Welding Speed 80t/min 80t/min 80t/min
Control System PLC Control PLC Control PLC Control
Special specification is available according to your requirements.



description

This machine has multi spot welding function, advanced control system enables the machine to weld the mesh in any sequence or any way. Using high quality air cylinder to provide welding force, the output is much more stable and durable than conventional mechanical type welding machines.Also machine features can be made by your idea together with our engineer technique support.Varies materials can be welded: weld mild steel wire, stainless wire, galvanized steel wire.Mesh panels: weld construction mesh panel, fridge shelf panel, shelf rack mesh panel, reinforcing mesh panelsMesh production line: producing rolled mesh in varies size.All kinds of mesh products: weld cage for bird, pet cage welding, mesh trolley welding, weld wire mesh basket, wire tray, fridge condensers, cable tray mesh etc.



Features

1. Easy to operate: to finish one panel mesh, only need to turn on one auto-running button..

2. helical gear reducer: to ensure the machines high load run, and outside installation, easy for maintenance.
3. mesh output device: with Panasonic servo motor and planetary gear, ensure the system stability and end products precision..
4. unique design of the cross wire input hopper: the machine will stop if there are no wires or abnormal happens, and it will run, when everything is OK.
5. welding stop function: when the wire welding, the main motor will stop temporarily, will continue to run after welding, insure the welding quality
6. all the spare parts are from famous brand at home and abroad.



Usage



Water conservancy project, housing construction (floor plate, wall panel), bridge construction, highway construction, airport construction, railway construction, mine protection, which can be widely applied in construction industry.Fence netting (highway, rail road, mountain surrounding and stadium), fence mesh and the production of other protective fences.The production of bird cage, dog cage, various kinds of pet cages and all kinds of breeding cagesThe production of metal furniture, goods shelf, shopping cart and protective cover

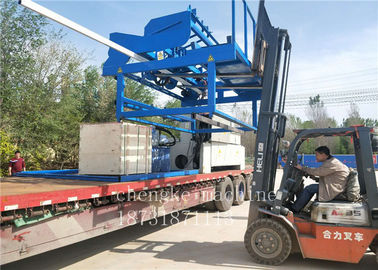

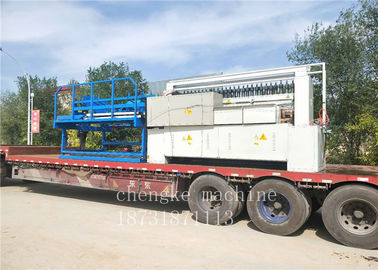

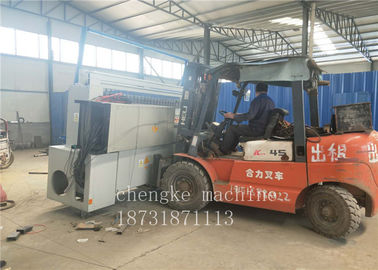

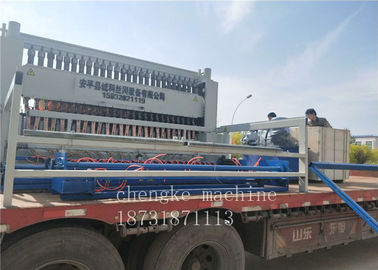

Packaging

1.The main body of the wire mesh welding machine will be packaged with plastic.
2.The anther parts of the wire mesh welding machine,will be packaged with cartons,they will be protected well.
3.If you have another package requirements,we will change it .
