Product Details:
Payment & Shipping Terms:
|
| Product Name: | Steel Bar Welded Mesh Machine | Width: | Max.2.5mm |
|---|---|---|---|
| Diameter: | 5-12mm | Control System: | PLC Control |
| After-sales: | Engineers Available To Service Machinery Overseas | Welding Speed: | 40-50Tines/Min |
| High Light: | automatic wire mesh welding machine,reinforced mesh welding machine |
||
High Speed , Smaller Investment , Lower Maintainence Steel Bar Welded Mesh Machine
description
1. this machine adopts synchronous control technique ,both welding time and cent-control welding is supervised by IPC.
2. it adopts modularization design, so it is easy to improve the machine,s function and feature.
3. save time to add wires and save labor to operate.
4. firm welding ,little noise,high speed ,smaller investment,lower maintainence.
Features

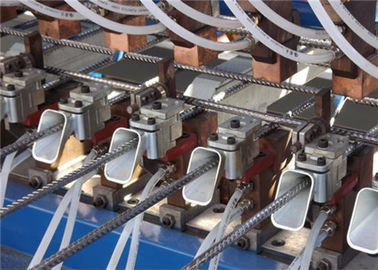

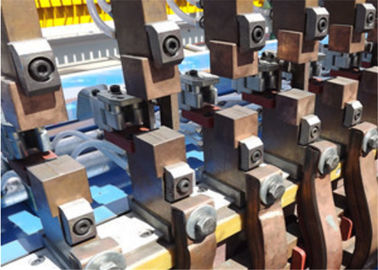

1. Water-cooling transformer and water-cooling lower electrodes to make sure the welding firm during a long working time, and prolong the service life.
2. Feeding and Welding System Cross wire feeding: Firstly, the coil wires are straighten and cut into fixed length by straightening cutting machine, which become weft wire. Then worker put the weft wires into wire hopper. Wire hopper under the control of step motor, the weft wires falling automatically one by one
Line wire feeding: warp wires are the same to weft wires, firstly use straightening cutting machine to straighten and cut coil wire into fixed length. Then the line wires are sent by labor and fed automatically, when it welding and drawing, labors can prepare the wires, it increases the production efficiency.
3. The mesh pulling system is controlled by step motor, which makes the pulling mesh aperture more standard and accurate.
Specification
| High Speed , Smaller Investment , Lower Maintainence Steel Bar Welded Mesh Machine | |
| wire diameter | 5-12mm |
| cross wire length | Max 2.5m, or 2m or as required |
| line wire length | Max 12m |
| Aperture | 100-300mm |
| electric capacity | 900KVA |
| welding speed | 45-75 times/min |
| much more details | please contact us |
service
1. Quality Products:
We follow the policy of Seeking Development through Qualityand Establishing Reputation via Quality Products. We try to meet customers' requirements with excellent quality products.
2. Honest Service:
We offer honest service to customers. We provide products with sincere and excellent service and the most prompt delivery.
3. Innovation:
We have advanced inspection and production equipment and can develop new products to meet the demand of market. We can also accept customized orders. Our strong R&D capability enables us to innovate almost everyday.
4. We enjoy:
Advanced wire mesh weaving machines; Experienced and well-trained work staff; Quali
