Rib Mesh Steel Wire Mesh Machine , 380V 3P 50HZ Wire Mesh Welding Machine

I'm Online Chat Now

Rib Mesh Steel Wire Mesh Machine , 380V 3P 50HZ Wire Mesh Welding Machine

China Rib Mesh Steel Wire Mesh Machine , 380V 3P 50HZ Wire Mesh Welding Machine supplier
Rib Mesh Steel Wire Mesh Machine , 380V 3P 50HZ Wire Mesh Welding Machine supplier Rib Mesh Steel Wire Mesh Machine , 380V 3P 50HZ Wire Mesh Welding Machine supplier Rib Mesh Steel Wire Mesh Machine , 380V 3P 50HZ Wire Mesh Welding Machine supplier Rib Mesh Steel Wire Mesh Machine , 380V 3P 50HZ Wire Mesh Welding Machine supplier

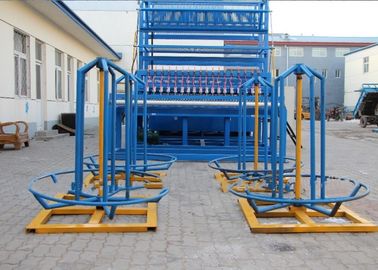

Large Image :  Rib Mesh Steel Wire Mesh Machine , 380V 3P 50HZ Wire Mesh Welding Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-RM-2500Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: plastic warps
Delivery Time: 15 Workdays
Payment Terms: T/T, L/C, Western Union
Supply Ability: 25 Sets/Month
Contact Now
Detailed Product Description
Product Name: Automatic Tunnel Support Mesh Reinforcing Rib Mesh Welding Machine Width: Max.2.5mm
Wire Diameter: 5-12mm Voltage: 380V
After-sales: Engineers Available To Service Machinery Overseas Weight: 6.5T

Automatic Tunnel Support Mesh Reinforcing Rib Mesh Welding Machine



description


1. HIM, plc, touch screen in client's native language, easy to iput and set all the parameter needed to weld the reinforcing mesh.

2. automaitc longitudinal wire input device with servo motor.

3. automatic cross wire input hopper with step motor

4. automaitc mesh out-put device with servo motor

.
Features


1. all the spare parts are from famous brand at home and abroad.
2. welding stop function: when the wire welding, the main motor will stop temporarily, will continue to run after welding, insure the welding quality.
3. helical gear reducer: to ensure the machines high load run, and outside installation, easy for maintenance.
4. mesh output device: with Panasonic servo motor and planetary gear, ensure the system stability and end products precision.
5. parameter set: all the parameter could be set on the touch screen in English.



Specification




Wire diameter Φ512mm(can be customized)
Max Width of mesh 2000mm (can be customized)
Rated power 125KVA×10
Rotated voltage 380V3P50HZ
current lead(copper)cross sectional area 90squara
Pressure Mechanical spring
Cooling water supply 144L/min
Rated duty cycle 20%
Over all dimension 450000×4300×3400mm
Max distance to transformer 150m
Longitudinal wire spacing 100-300mm
Transverse wire spacing 100mm(adjustable)
Welding spot 21
Main motor power 11KW(frequency control brake)(can be customized to the practical enviroment )
Welding speed 40-50time/min
Welding method Controlled silicon synchronous control
Feeding Longitudinal wire:draw drum feeding
Transverse wire straightening and cutting ,feeding automatic
Compressed air supply 60-80L


Packaging Details

1. The main body of the wire mesh welding machine will be packaged with plastic.
2. The anther parts of the wire mesh welding machine,will be packaged with cartons,they will be protected well.
3. If you have another package requirements,we will change it .
4. We will supply the best package for you.
