2500mm Width Security Reinforcing Mesh Welding Machine 6T 380V 150KVA X 8

I'm Online Chat Now

2500mm Width Security Reinforcing Mesh Welding Machine 6T 380V 150KVA X 8

China 2500mm Width Security Reinforcing Mesh Welding Machine 6T 380V 150KVA X 8 supplier
2500mm Width Security Reinforcing Mesh Welding Machine 6T 380V 150KVA X 8 supplier 2500mm Width Security Reinforcing Mesh Welding Machine 6T 380V 150KVA X 8 supplier 2500mm Width Security Reinforcing Mesh Welding Machine 6T 380V 150KVA X 8 supplier 2500mm Width Security Reinforcing Mesh Welding Machine 6T 380V 150KVA X 8 supplier

Large Image :  2500mm Width Security Reinforcing Mesh Welding Machine 6T 380V 150KVA X 8

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-RM-2500Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: plastic warps
Delivery Time: 15 Workdays
Payment Terms: T/T, L/C, Western Union
Supply Ability: 25 Sets/Month
Contact Now
Detailed Product Description
Product Name: Security Reinforcing Concrete Wire Mesh Welding Machine Width: 2.5mm
Wire Diameter: 5-12mm,4-8mm , 3-6mm(custormized) Voltage: 380V
After-sales: Engineers Available To Service Machinery Overseas Weight: 6T
High Light:

automatic wire mesh welding machine

,

reinforced mesh welding machine

2500mm Width Security reinforcing concrete wire mesh welding machine


description

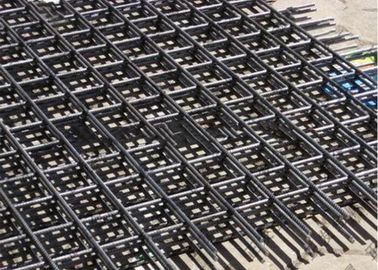

Mainly used in large industrial workshop ,large venues ,factories flat ,bridge deck pavement ,road surface ,tunnel lining ,the subway engineering ,highway engineering
.
Features

1. Easy to operate: to finish one panel mesh, only need to turn on one auto-running button.

2. welding stop function: when the wire welding, the main motor will stop temporarily, will continue to run after welding, insure the welding quality.
3. helical gear reducer: to ensure the machines high load run, and outside installation, easy for maintenance.
4. parameter set: all the parameter could be set on the touch screen in English.
5. all the spare parts are from famous brand at home and abroad.


Specification


Wire diameter 5.0-12mm Line wire form coil feeding
Weft wire distance Mini 25mm Weft wire form pre-cut wire
Line wire distance 100-300mm Rated voltage 380V
Welding net width 2500mm Rated power 150KVA X 8
Welding speed 60-70times/min Overall dimension 25X 5.5X 3.5M
line wire No. 24 weight 6T
