Reinforcing Mesh Welding Machine For Construction And Building Mesh
description
1. This kind of brc concrete rebar steel reinforce mesh welding machine is our latest developed
reinforcing mesh welding machine.
2. The line wire and the weft wire of brc concrete rebar steel reinforce mesh welding machine
are pre-straight and pre-cut.
3. The line wire is feeding by the servo motor ,pulling the wire net by the servo motor auto.
4. The brc concrete rebar steel reinforce mesh welding machine welding power comes from the
cylinders. It's easy to control the welding pressure .
5. The weft wire of brc concrete rebar steel reinforce mesh welding machine feeding from the
multi hopper which capacity is more over ten times than the traditional hopper.
6. The new brc concrete rebar steel reinforce mesh welding machine added the bear wire net
and carry equipment that makes the working more convenience .

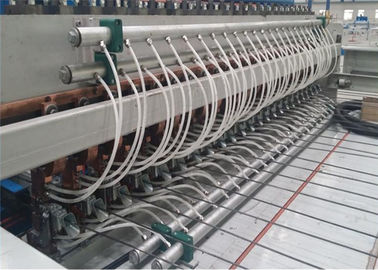

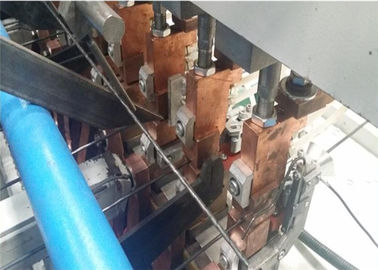

7. The welding part of brc concrete rebar steel reinforce mesh welding machine is used the
springiness input wire trunking that makes the welding copper use for long time.
8. This brc concrete rebar steel reinforced mesh welding machine adopts synchronous control
technique. The cent-control and welding time are composed of PLC program system. The input

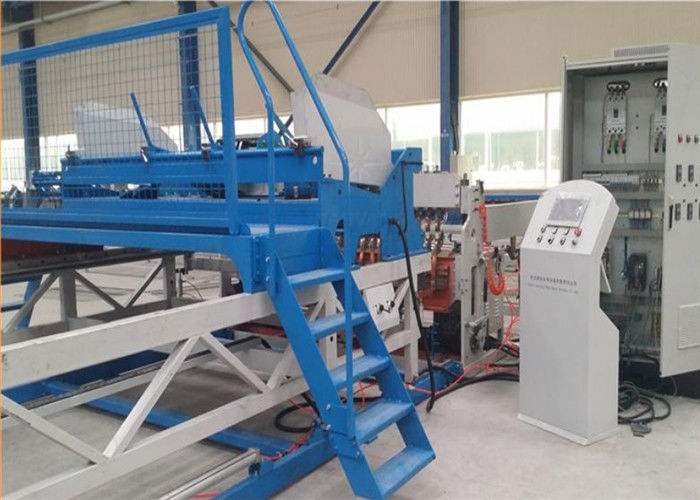

front-panel is touch screen , the operate is more intelligent and reasonable.
.
.
Features
1. Easy to operate: to finish one panel mesh, only need to turn on one auto-running button.
2. unique design of the cross wire input hopper: the machine will stop if there are no wires or abnormal happens, and it will run, when everything is OK.
3. welding stop function: when the wire welding, the main motor will stop temporarily, will continue to run after welding, insure the welding quality.
4. main motor servo control: with Delta VE high-end frequency concerter and PG card to make the main motor 0-1500r/min increase or decrease speed is 0.02s, zero speed, could 200% torque run, ensure the quick reaction of the machine.(motor with Omron encoder)
5. helical gear reducer: to ensure the machines high load run, and outside installation, easy for maintenance.
6. mesh output device: with Panasonic servo motor and planetary gear, ensure the system stability and end products precision.
7. automatic back to zero: the machine finished products, the mesh output device will automatically back to zero.
8. automatic turn on: with line wire input device, after finishing send the line wires, the machine will automatically turn on the machine.
9. failure display: when the machine fail, it will show on the touch screen(HMI) in english, very easy to maintain.
10. parameter set: all the parameter could be set on the touch screen in English.
11. all the spare parts are from famous brand at home and abroad.
Specification
| Model | CK-FM-2500Q | CK-RM-2500Q |
| Wire diameter | 3-8mm | 5-12mm |
| Welding width | Max.2500mm | Max.2500mm |
| Longitude wire space | 100-300mm | 100-300mm |
| Cross wire space | Min.50mm | Min.50mm |
| Mesh length | Max.12000mm | Max.12000mm |
| Wire feeding way | Pre-straightened & pre-cut | Pre-straightened & pre-cut |
| Welding speed | 50-75 times/min | 40-65times/min |
| Welding electrodes | Max.24pcs | Max.24pcs |
| Welding transformers | 150kva*6pcs | 150kva*12pcs |
Usage
Highway , railway and various function of protection . For construction which used for basis of high building , roof mesh , floor mesh . It is also widely used in agriculture and poultry mesh , farming mesh and so on .
Packaging Details
1. The main body of the wire mesh welding machine will be packaged with plastic.
2. The anther parts of the wire mesh welding machine,will be packaged with cartons,they will be protected well.
3. The spare parts of the wire mesh welding machine will be packaged in the wooden cases.
4. Only this type wire mesh welding machine will need a 20' container loading.
5. If you have another package requirements,we will change it .
6. We will supply the best package for you.
