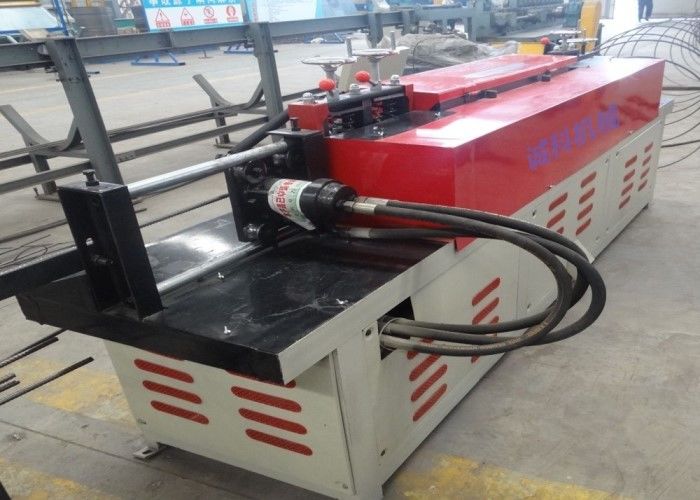

Round Bar Straightening Machine , Coiled Bar Wire Straightening & Cutting Machine

China Round Bar Straightening Machine , Coiled Bar Wire Straightening & Cutting Machine supplier
Round Bar Straightening Machine , Coiled Bar Wire Straightening & Cutting Machine supplier Round Bar Straightening Machine , Coiled Bar Wire Straightening & Cutting Machine supplier Round Bar Straightening Machine , Coiled Bar Wire Straightening & Cutting Machine supplier Round Bar Straightening Machine , Coiled Bar Wire Straightening & Cutting Machine supplier

Large Image :  Round Bar Straightening Machine , Coiled Bar Wire Straightening & Cutting Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-WS-Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Condition: New Use: Wire
Color: Customer Demand Weight: 1400Kg
Warranty: 1 Year After-sales: Overseas Service Provided

Automatic High speed Steel Wire Straightening Machine And Wire Cutting





Product Application


•  Machine has adjustable speed and traction motor to ensure reliable bar pulling-in and to avoid scratches or rigidity loss.
•  DIGITAL CONTROL by the control cabinet that features the ENCODER for the straightening and cutting adjusting, it can memorize multiple setting of different length and number of pieces.

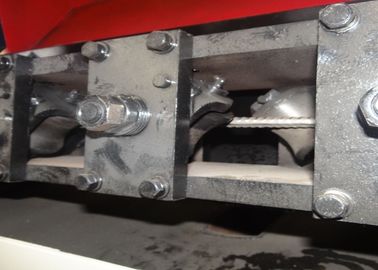

•  STRAIGHTENING WHEELS, PULLING WHEELS, SQUARE BLADE, ROUND BLADE made of high-quality alloyed steel with proper heat treatment (quenching) and 2mm thick external case to ensure high performances also under heavy loads and long working life
• Meter counter on the external straightening wheels for stirrup length accuracy.



Main Features


Unique upper and lower roller feeding device ensure the smooth and reliable feeding,avoiding steel bar scratch and injured

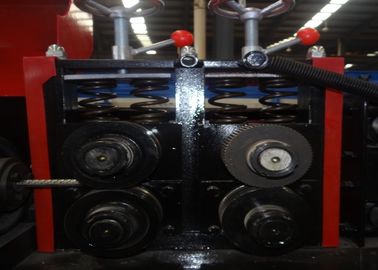

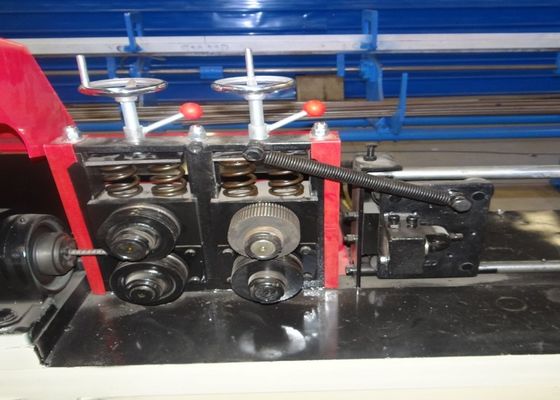

Adjustable upper and lower traction wheels ensure the smooth feeding of reinforcement.Straightening wheel,square blade and round blade after heat treatment can work in a heavy burden

Counting wheel(using for straightening counting) and encoder(cutting process)working together can reach to more than 20 batch memory function and operate fast


Our Service



Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.
After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.



parameters



Straightening bar Diameter 55m/min
Cutting Lengt 600-8000mm
Cutting Length Error ±10mm
Straightening error ±2mm/m
Straightening and traction Motor 11KW-4p
Cutting Motor 5.5KW-4P
traction motor 3KW-6P
total power 15KW
Whole Weight 2000kg
