Custom Heavy Duty Fencing Wire Making Machine , 4M Width Chain Link Weaving Machine

I'm Online Chat Now

Custom Heavy Duty Fencing Wire Making Machine , 4M Width Chain Link Weaving Machine

China Custom Heavy Duty Fencing Wire Making Machine , 4M Width Chain Link Weaving Machine supplier
Custom Heavy Duty Fencing Wire Making Machine , 4M Width Chain Link Weaving Machine supplier Custom Heavy Duty Fencing Wire Making Machine , 4M Width Chain Link Weaving Machine supplier Custom Heavy Duty Fencing Wire Making Machine , 4M Width Chain Link Weaving Machine supplier Custom Heavy Duty Fencing Wire Making Machine , 4M Width Chain Link Weaving Machine supplier

Large Image :  Custom Heavy Duty Fencing Wire Making Machine , 4M Width Chain Link Weaving Machine

Product Details:

Place of Origin: Hebei China
Brand Name: Chengke
Certification: ISO
Model Number: CK - CL - 1Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: With plastic
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25
Contact Now
Detailed Product Description
Type: Fully Automatic Controller: PLC Controller
Guarantee Time: 1 Year After Sales: Engineers Available To Service Overseas
Weight: 4 . 2 T

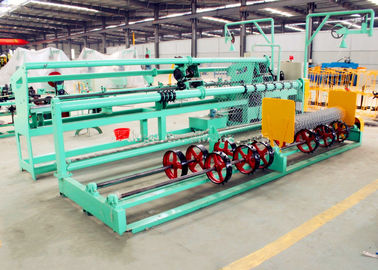

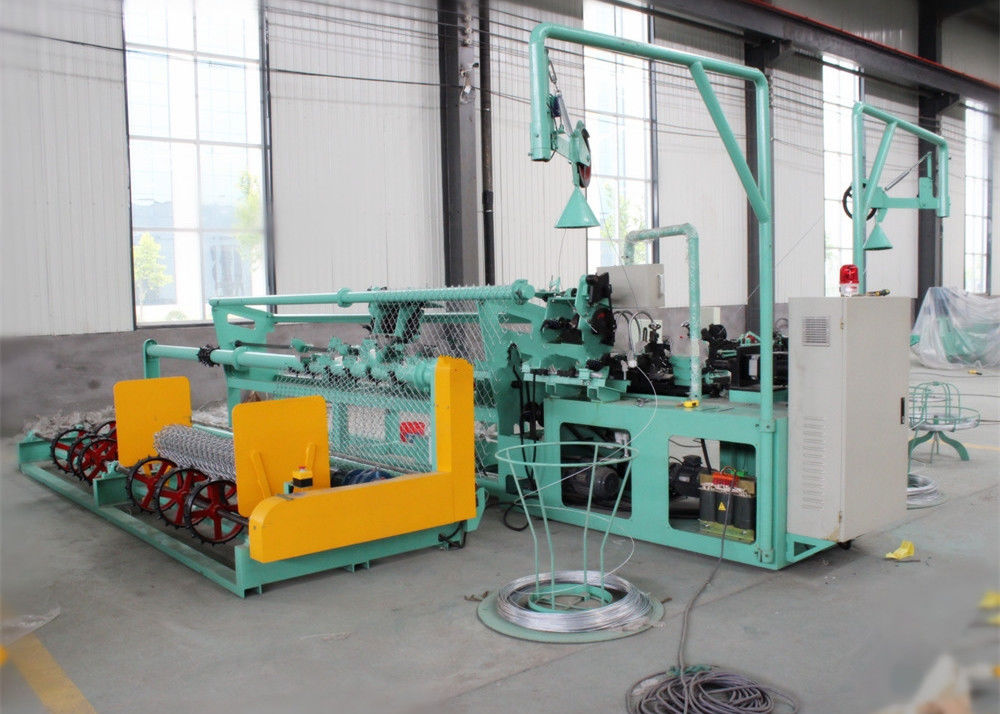

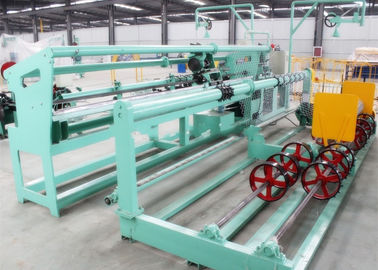

Fully Automatic Chain Link Fence Machine For Low Noise 4M Width





presentation



The spider metal wire diamond mesh weaving machine adopt the principle of weaving double wire from Germany . though the production efficiency is high and the quality of mesh sheet is reliable . The machine design is reasonable , control by the microcomputer and integration . Automatically complete the spinning , cut  , working procedure and volume net, border closing . The advanced import craft, the domestically produced machinery price, which is the ideal choice for the vast users of diamond mesh .



Description



1).Chain link fence making machine is used for manufacturing Chain Link Fence of different sizes,like 30*30mm to 80*80mm.
2). Two wires twist together ,and turn into the finished mesh hole, so the producing speed is high.
3).The mesh is automactically wound to form rolls when the desired length is manufactured.
4).The machine is controlled by PLC automatic controller,and easy and safe to operate,1 person is ok.
5).Auto edging,curved,cutting,high working speed.
6).Warranty 1 year for main frame, the machine include one set dies.
Engineers avaliable to service machinery overseas


Features



1. This machine adopts PLC (programmable logic controller). Controlling the wire feeding, chain making and chain link fence weaving.
2. Machine adopts 2 feeding wire methods to weave the mesh, high weaving speed with high quality.
3. Reasonable designing, touch screen controller, complete wire feeding, wire cutting, mesh conveying and edge finished totally automatic.

4.Main components used in the machine such as single-chip computer and hydraulic system are of famous brand and excellent quality.



performance



1. The production efficiency is about twice of the same species.
2. The fault is the lowest in the same species.
3. The machine is easy and simple to handle.The worker has the common mechanical knowledge can master it in one hour.
4. The loss of the raw materials of the same species is 5%-7%, while the JL-2000 chain link fence machine is nearly zero.
5. The electrical energy the chain fence link making machine can save is about20%.
6. It is suitable to all kinds of mild steel wires.

Maximun wire diameter 4.0 mm
Minimum wire diameter 1.5mm
Maximum Mesh Size 100mm
Volts Power 220V, 380V, 415V, 440V, etc.
(According to your requirement)
HZ Power 50hz, 60hz, etc.
(According to your requirement)
Mesh Edge Over lock or twist
