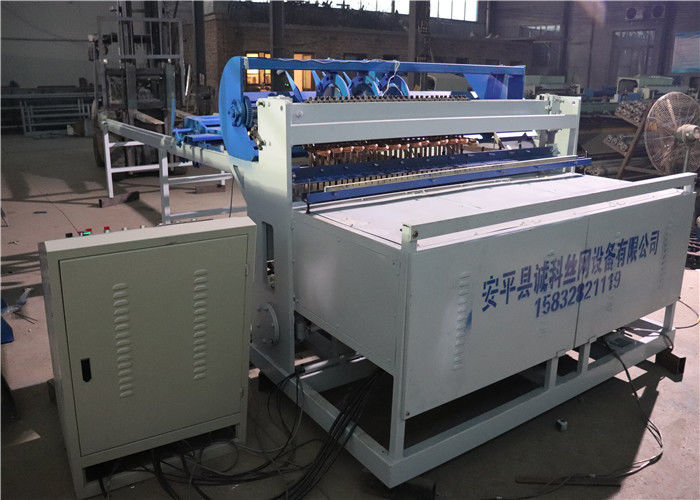

Stainless Steel Wire Fence Mesh Welding Machine Sturdy Structure Long Service Life

I'm Online Chat Now

Stainless Steel Wire Fence Mesh Welding Machine Sturdy Structure Long Service Life

China Stainless Steel Wire Fence Mesh Welding Machine Sturdy Structure Long Service Life supplier
Stainless Steel Wire Fence Mesh Welding Machine Sturdy Structure Long Service Life supplier Stainless Steel Wire Fence Mesh Welding Machine Sturdy Structure Long Service Life supplier Stainless Steel Wire Fence Mesh Welding Machine Sturdy Structure Long Service Life supplier Stainless Steel Wire Fence Mesh Welding Machine Sturdy Structure Long Service Life supplier

Large Image :  Stainless Steel Wire Fence Mesh Welding Machine Sturdy Structure Long Service Life

Product Details:

Place of Origin: Hebei China
Brand Name: ChengKe
Certification: ISO
Model Number: CK-FM-2000Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: plastic warps and plywood box
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 Set per month
Contact Now
Detailed Product Description
Wire Diameter: 3-6mm Product Name: Low Carbon Steel Fence Mesh Welding Machine
Width: 2 M Condition: New
Warranty Period: 1 Year Functions: 380v

Galvanized Wire / Stainless Steel Wire / Low Carbon Steel Fence Mesh Welding Machine





Description



1. The fence mesh panel welding machine, which welding power comes from the spring. It is easily to control the welding pressure, more over ten times than the traditional hopper.

2. The farm fence mesh panel welding machine uses PLC control technique, welding time and separate welding adopt Japan, Sonydigital control system which can be input to touch screen control panel to adjust the mesh size, and it can weld different size mesh on the same wire mesh panel.

3. The cross wire feeding is automatic and driven by step motor, which makes the cross wire falling and mesh aperture size more accurate.

4.The mesh pulling system is controled by step motor, which is easy to gerulate mesh hole and mesh opening size is rather accurate, welding aperture could adjust randomly with certain range.

5.The machine use touch screen operation system, you can change the welding time and mesh size.



advantages



1. Using the latest technology less splash, beautiful mesh.
2. Machine trial is strong, can produce a variety of products.
3. Technology is mature and stable, easy to operate.
4. Automatic machinery to save manpower.
5 work fast, increase production.
6. Product accuracy, solid solder joints.
7. Welding aperture can be adjusted in the range.



Used



1 . fence mesh for railway, highway, airport bridge and constructions.

2 . Mesh panel for goods shelf and storage racks.



Specifications



Galvanized Wire / Stainless Steel Wire / Low Carbon Steel Fence Mesh Welding Machine

Wire Diameter

3-5mm
Longitude Wire Space 50-200mm
Cross Wire Space 50-200mm
Width of Mesh Max2500mm
Welding Electrodes 48pcs
Welding Speed 45times/min
Longitude Wire Feeding From Wire Coils
Cross Wire Feeding Pre-cut&Straightened
Rated Electrical Power 100kva*6pcs
The Wire Mesh Welding Machine is also able to be made to order according to customer’s requirement.
