Low Carbon Steel Fence Mesh Welding Machine PLC Control Low Power Consumption

I'm Online Chat Now

Low Carbon Steel Fence Mesh Welding Machine PLC Control Low Power Consumption

China Low Carbon Steel Fence Mesh Welding Machine PLC Control Low Power Consumption supplier
Low Carbon Steel Fence Mesh Welding Machine PLC Control Low Power Consumption supplier Low Carbon Steel Fence Mesh Welding Machine PLC Control Low Power Consumption supplier Low Carbon Steel Fence Mesh Welding Machine PLC Control Low Power Consumption supplier Low Carbon Steel Fence Mesh Welding Machine PLC Control Low Power Consumption supplier

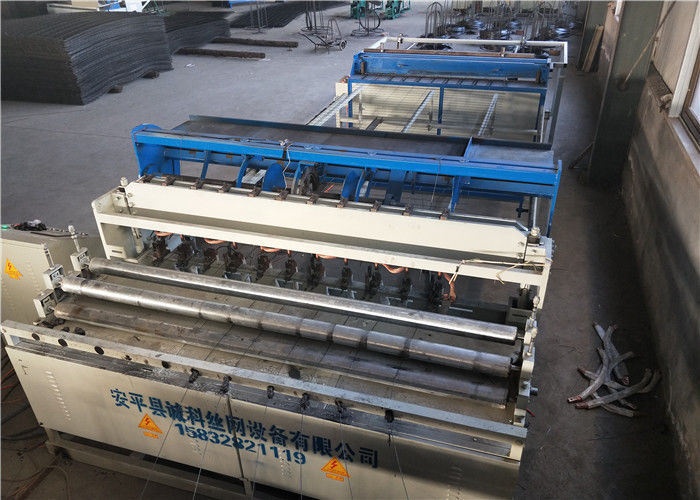

Large Image :  Low Carbon Steel Fence Mesh Welding Machine PLC Control Low Power Consumption

Product Details:

Place of Origin: Hebei China
Brand Name: ChengKe
Certification: ISO
Model Number: CK-FM-2000Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: plastic warps and plywood box
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 Set per month
Contact Now
Detailed Product Description
Wire Diameter: 3-6mm Product Name: Automatic Fence Mesh Welding Machine
Width: 2 M Condition: New
Warranty Period: 1 Year Functions: 380v

Automatic Fence Mesh Welding Machine With Shearing Machine With Automatic Falling Mesh





Description



1. The fence mesh panel welding machine, which welding power comes from the spring. It is easily to control the welding pressure, more over ten times than the traditional hopper.

2. The farm fence mesh panel welding machine uses PLC control technique, welding time and separate welding adopt Japan, Sonydigital control system which can be input to touch screen control panel to adjust the mesh size, and it can weld different size mesh on the same wire mesh panel.

3. The cross wire feeding is automatic and driven by step motor, which makes the cross wire falling and mesh aperture size more accurate.

4.The mesh pulling system is controled by step motor, which is easy to gerulate mesh hole and mesh opening size is rather accurate, welding aperture could adjust randomly with certain range.

5.The machine use touch screen operation system, you can change the welding time and mesh size.



advantages



1. Feeding material:

The warp wire and weft wire are straightened and cutted from coil wire material ,realized by auto straightening and cutting machine.

The warp wire are placed on a corresponding wire penetrating mold by worker, and the weft wire will be automatic falling down one by one ,from the weft wire system
2. Welding mesh panel system:

The main machine starts welding and adopts a synchronous control technology, both branch control welding time and welding time are controlled by a Mitsubishi PLC digital programming system, and the mesh opening size can be adjusted only by direct input on a touch screen; and it could be exist different weft distance on one piece of one mesh sheet
3. Drawing mesh panel system:

Panasonic ( Japan ) step motor controls the whole automatic mesh panel drawing process until one mesh panel finished, and the automatic mesh connecting and discharging system is started; the welding of the next mesh is started.



Specifications



Wire Diameter

3-5mm
Longitude Wire Space 50-200mm
Cross Wire Space 50-200mm
Width of Mesh Max2500mm
Welding Electrodes 48pcs
Welding Speed 45times/min
Longitude Wire Feeding From Wire Coils
Cross Wire Feeding Pre-cut&Straightened
Rated Electrical Power 100kva*6pcs
The Wire Mesh Welding Machine is also able to be made to order according to customer’s requirement.



Used



1 . fence mesh for railway, highway, airport bridge and constructions.

2 . Mesh panel for goods shelf and storage racks.
