Product Details:
Payment & Shipping Terms:
|
| Mesh Width: | Max2.5M | Mesh Length: | Max6M |
|---|---|---|---|
| Product Name: | Mild Steel Fence Wire Mesh Welding Machine | Warranty: | 1 Year |
| Color: | Customer's Requirment | After-sales: | Overseas Service Provided |
| High Light: | fence panel making machine,diamond mesh fencing machine |
||

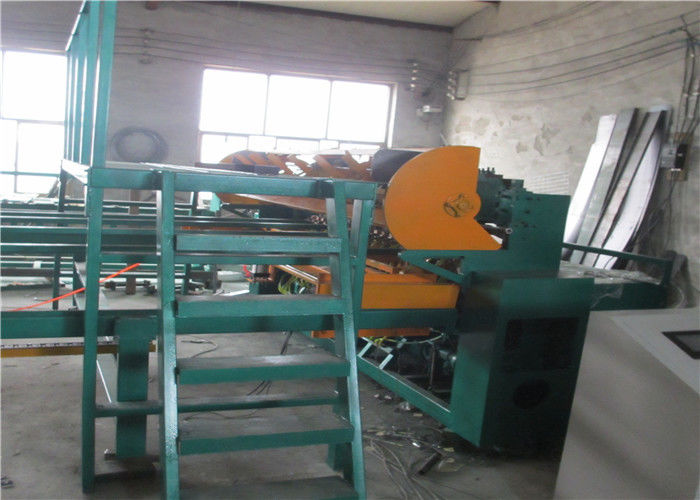

Railway / Bridge / Garden / Barrier / Security / Prison Fence Mesh Welding Machine
description
High Security Fence is well known in the word as an anti-climb&anti-cut through barrier,while providing the lowest level of visual impact to the surroundings.The panels are welded with high quality carbon steel wires.It is designed to give attractive,long lasting and secure perimeter protection for indust rial and commercial properties,public utilities,and it is really suited for electronic alarm and detection systems-no blid sports for CCTV.
Features
1. Flat surface
2. Uniform mesh hole
3. No burn marks
4. High precision
5. Anti-climb
6. Beautiful appearance
7. Anti-cut
Specification
| Railway / Bridge / Garden / Barrier / Security / Prison Fence Mesh Welding Machine | |||
| Wire diameter | 2.5-6mm | Longitude Wire Feeding | Pre-straighted&pre-cut |
| Longitude wire space | 50-300mm | Cross wire feeding | Pre-straighted&pre-cut |
| Cross wire space | 25-300mm | Rated electrical powe | 125kva*6pcs |
| Width of mesh | 2500mm | Rated voltage | as your request |
| Welding electrodes | 48pcs | weight | 4T |
| Welding speed | 45-75tines/min | Overall size | 3m*2*1.8m |
| Adjustable electromagnetism motor | 4.0KW | ||
| Can be customized according to customer requirements. | |||
Service
Pre-Sales Service
Inquiry and consulting support.
Sample testing support.
View our Factory.
After-Sales Service
Training how to install the machine, training how to use the machine.
One year warranty for spare parts and main machine.
We will provide you technical support for whole life.
Engineers available to service machinery overseas.
