Prison Diamond Mesh Fencing Machine Anti Climb , Airport Fence Making Machine

I'm Online Chat Now

Prison Diamond Mesh Fencing Machine Anti Climb , Airport Fence Making Machine

China Prison Diamond Mesh Fencing Machine Anti Climb , Airport Fence Making Machine supplier
Prison Diamond Mesh Fencing Machine Anti Climb , Airport Fence Making Machine supplier Prison Diamond Mesh Fencing Machine Anti Climb , Airport Fence Making Machine supplier Prison Diamond Mesh Fencing Machine Anti Climb , Airport Fence Making Machine supplier Prison Diamond Mesh Fencing Machine Anti Climb , Airport Fence Making Machine supplier

Large Image :  Prison Diamond Mesh Fencing Machine Anti Climb , Airport Fence Making Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-FM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Rated Capacity: 125kva*6pcs Welding Speed: 45-75 Times/min
Warrant: 1 Year Product Name: Galvanized Steel Wire Mesh Panel Machine
Color: Customer's Requirment After-sales: Overseas Service Provided

Anti Climb Fence Mesh Welding Machine For Prison Fence Airport Fence





description



1. Spatter is small,low burn of mark,improving the beauty of mesh panel.
2. The upper and down contact is made of high quality chrome,zirconium an copper(Size:35*35*18mm),has good thermal conductivity and abrasion-proof,with a long service life.
3. The material of the down electric pole base is red cooper(Size:18*100mm),has good electrical conductivity, making the welding pressure be uniform, the mesh panel solid and stable.
4. The transformer (8 grades adjustment) cooled by water circulation system,it is better for its service life.
5. Wire feeding car is controlled by step motor.this is our patent.

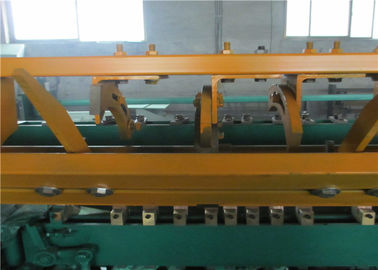

6. The hopper is controlled by Taiwan Delta step motor.The cross wire fall automatically from the hopper to the middle of the upper and lower electrodes.The falling accuracy is perfect.


Features

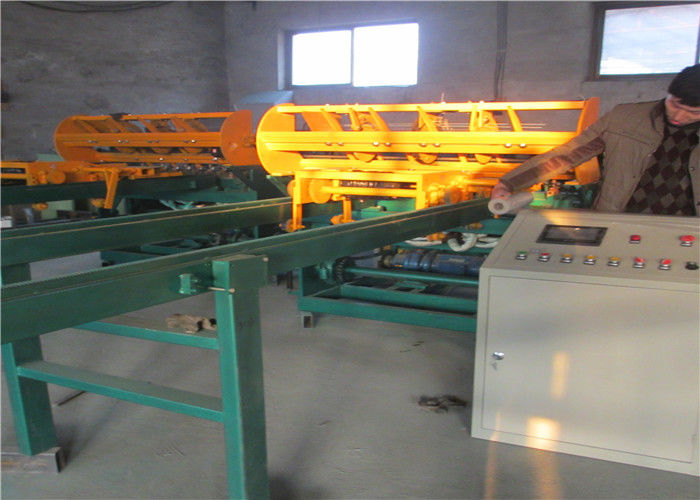

1. PLC control,with the humanized operation interface, easy to operate and master.
2. The adjustment of mesh specifications uses the touch screen, it is very easy to set the welding parameters and production data.
3. The touch screen adopts Taiwan Delta,it can be of in English.
4. The mesh size can be adjusted to meet the different needs of users.
5. PLC uses the Delta of Taiwan.
6. Inverter adopts HOLIP brand.
7. Mesh drawing car is controlled by Servo motor, improve the accuracy of the mesh effectively.
8. Using the gear and the rack drive, the transmission efficiency is perfect.
9. Mesh can vary to meet the production of a variety of needs.
10. Both ends of the traction device is equipped with limit switches, preventing traction car from crashing and also mechanical damage from collision.



Specification



      Anti Climb Fence Mesh Welding Machine For Prison Fence Airport Fence
wire diameter 2.5-6mm
longitude wire space 50-300mm
cross wire space 25-300mm
width of mesh up to 2500mm
rated voltage buyer demand
welding electrode 48 pcs
welding speed 45times/minute
rated electrical power 85kva*6pcs
The Wire Mesh Welding Machine is also able to be made to order according to customer’s requirement.
