Rated Power 75kva Wire Mesh Making Machine , Heavy Duty Mesh Panel Welding Machine

I'm Online Chat Now

Rated Power 75kva Wire Mesh Making Machine , Heavy Duty Mesh Panel Welding Machine

China Rated Power 75kva Wire Mesh Making Machine , Heavy Duty Mesh Panel Welding Machine supplier
Rated Power 75kva Wire Mesh Making Machine , Heavy Duty Mesh Panel Welding Machine supplier Rated Power 75kva Wire Mesh Making Machine , Heavy Duty Mesh Panel Welding Machine supplier Rated Power 75kva Wire Mesh Making Machine , Heavy Duty Mesh Panel Welding Machine supplier Rated Power 75kva Wire Mesh Making Machine , Heavy Duty Mesh Panel Welding Machine supplier

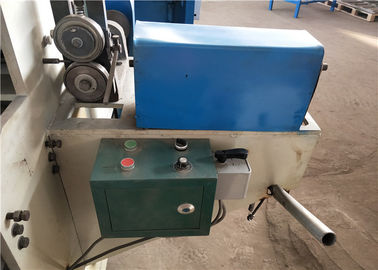

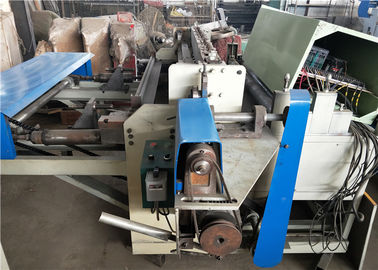

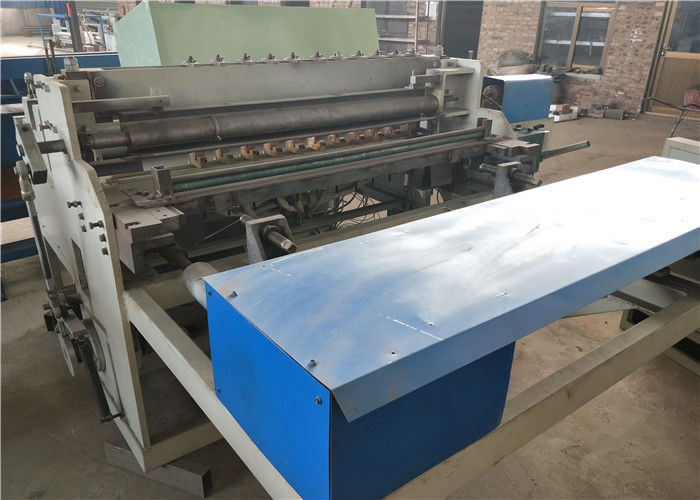

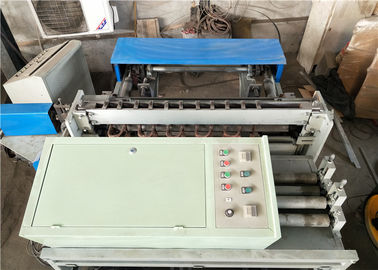

Large Image :  Rated Power 75kva Wire Mesh Making Machine , Heavy Duty Mesh Panel Welding Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-FM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Product Name: Fence Steel Wire Mesh Welding Machine Color: Customer's Requirment
Weight: 4T Rated Power: 75kva
Warranty: 1 Year After-sales: Overseas Service Provided

Automatic Wire Mesh Welding Sheet Machine Made In China Quality Assurance




description



The device uses power electronic synchronous control technology, welding time and sub-control welding time by the digital integrated slip circuit, high control accuracy, stable performance, solid solder joints, no burn marks. Welding speed, and easy to learn. Weft equipped with precision weft insertion device and precision positioning device to ensure that the weft length consistent and neat edges, without trimming. Pull the network system uses a flexible rod and grid positioning device, the grid fine-tuning easy, high-dimensional grid size, welding wire diameter and aperture can be adjusted in the range.



Features



1. The machine adopts the whole machine full position welding rack firm to meet the machine factory time high-speed operation.
2. The use of a small cell device, small three cm out of small cells, save the wire loss limit.
3. Based on the original model to improve the structure of a small lattice and shredded part of a more reasonable, low failure rate.
4. A small cell device using PLC microcomputer control, the movement is more accurate and reliable.



Specification



Automatic Wire Mesh Welding Sheet Machine Made In China Quality Assurance
Welding wire diameter 1.2-2.2mm
Weld ≤ 25 (according to customer requirements to add changes)
Weft spacing ≥ 40mm
Warp spacing ≥ 40mm
Rated voltage 380V
Welding width 1250mm
rated power 75kva
Welding speed 40-60 times / minute
Warp form continuous wire (wire)
Weft form continuous wire (wire)
Can be customized according to customer requirements.



Usage



It can be used in the manufacture of many kinds of products, such as Shule board net, fence net, floor pouring net, geothermal net, seedbed net, flower room net and so on.
