PVC Coated Wire Mesh Fencing Machine , 3 - 6mm Industrial Welded Wire Mesh Machine

I'm Online Chat Now

PVC Coated Wire Mesh Fencing Machine , 3 - 6mm Industrial Welded Wire Mesh Machine

China PVC Coated Wire Mesh Fencing Machine , 3 - 6mm Industrial Welded Wire Mesh Machine supplier
PVC Coated Wire Mesh Fencing Machine , 3 - 6mm Industrial Welded Wire Mesh Machine supplier PVC Coated Wire Mesh Fencing Machine , 3 - 6mm Industrial Welded Wire Mesh Machine supplier PVC Coated Wire Mesh Fencing Machine , 3 - 6mm Industrial Welded Wire Mesh Machine supplier PVC Coated Wire Mesh Fencing Machine , 3 - 6mm Industrial Welded Wire Mesh Machine supplier

Large Image :  PVC Coated Wire Mesh Fencing Machine , 3 - 6mm Industrial Welded Wire Mesh Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-FM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Product Name: PVC Coated Welded Wire Mesh Fence Panel Machine After-sales: Engineers Available To Service Machinery Overseas
Warranty: 1 Year Usage: Industrial Mesh Fence Mesh And Light Mesh
Color: Blue,white Weight: 4T

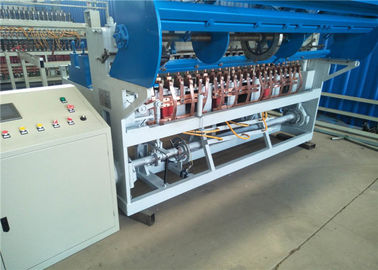

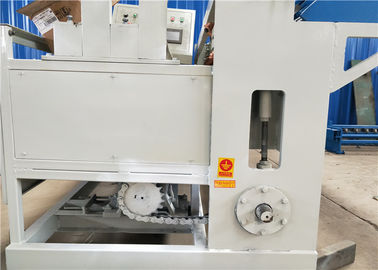

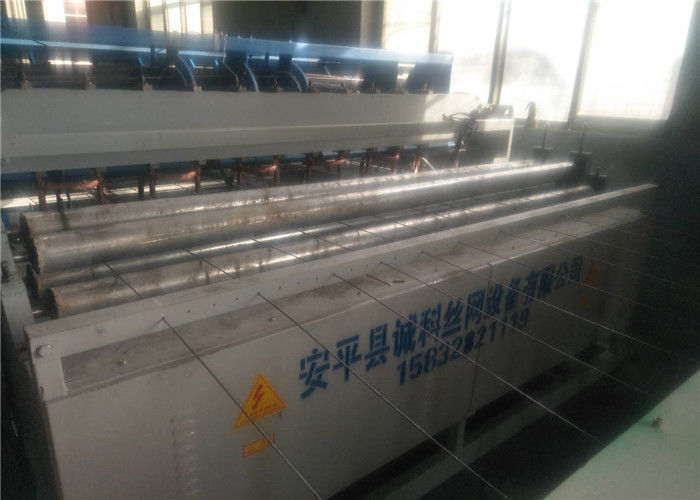

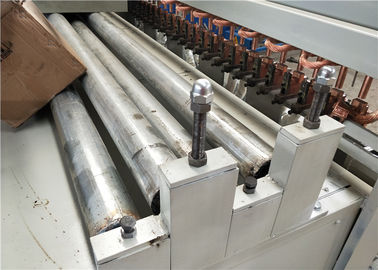

Automatic PVC Coated Welded Wire Mesh Fence Panel Machine 3 - 6mm







description



Fence welding machine using CNC synchronous control technology, welding time and sub-control welding time by the PLC digital programming system, the input panel for the touch screen or keyboard two, more intelligent operation, rationalization. Hurdle mesh welding machine once compact, sub-welding, the biggest advantage of this control is: You can appear in the same mesh between the warp and weft more than 30 different sizes of mesh. Welding a new type of efficient water-cooled welding transformers, expanding the scope of welding wire diameter. Easy to operate, high flexibility, the output is several times the manual single-point welder.



Usages



Can be used for highway fence, fencing, construction network, high-rise building with a variety of network products manufacturing.



Features



1. Using the latest technology less splash, beautiful mesh.
2. Machine trial is strong, can produce a variety of products.
3. Technology is mature and stable, easy to operate.
4. Automatic machinery to save manpower.
5 work fast, increase production.
6. Product accuracy, solid solder joints.
7. Welding aperture can be adjusted in the range.



Specification



      Automatic PVC Coated Welded Wire Mesh Fence Panel Machine 3 - 6mm
Welding width Max.2500mm(customizable)
Wire diameter 3-6mm
Welding speed 49-90times/min
Line wire distance 50-200mm(customizable)
Voltage 380V 50Hz
Cross wire distance ≥50mm
Can be customized according to customer requirements.
