High Way Guardrail Fence Mesh Welding Machine 160kva Power High Efficiency

I'm Online Chat Now

High Way Guardrail Fence Mesh Welding Machine 160kva Power High Efficiency

China High Way Guardrail  Fence Mesh Welding Machine 160kva Power High Efficiency supplier
High Way Guardrail  Fence Mesh Welding Machine 160kva Power High Efficiency supplier High Way Guardrail  Fence Mesh Welding Machine 160kva Power High Efficiency supplier High Way Guardrail  Fence Mesh Welding Machine 160kva Power High Efficiency supplier High Way Guardrail  Fence Mesh Welding Machine 160kva Power High Efficiency supplier

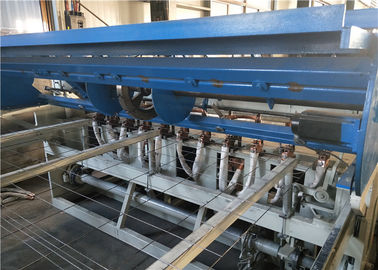

Large Image :  High Way Guardrail Fence Mesh Welding Machine 160kva Power High Efficiency

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-FM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Product Name: 3D Fence Panel Welding Machine Warranty: 1 Year
After-sales: Overseas Service Provided Color: Blue,white
Usage: High Way Guardrail Weight: 3T

3D Fence panel Welding Machine For High Way Guardrail Double Line Wire



description



1. The cross wires are fed from cross wire feeder, controlled by step motor and SMC (Japan) air cylinder.

2. The longitude wires should be inserted into slot tunnels (cast iron material), suitable for different diameter.

3. The control panel is more intelligent, very easy to operate. (Panasonic PLC program)

4. Clutch motor and helical gear reducer connect the principal axis directly, welding stable.

5. Pure red copper (upper) and chromised bronze (lower), durable..

6. Casting water-cooling welding transformers, high efficiency. The welding degree is adjusted by PLC.

7. Panasonic (Japan) servo motor+planetary reducer and SMC (Japan) air cylinders for pulling mesh.

8. The cable drag chain is Igus brand, imported from Germany, not easily hang down.



Mesh welding machine series:





Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, roll mesh welding machine, wedged wire screen welding machine, wire straightening and cutting machine etc.



After-sales



1. Guarantee time: 1 year since machine was installed at your factory but within 18 months against B/L date.
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer’s factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Timely reply for your machine questions.



parameter



Wire diameter 2.5-6mm/3-5mm
Line wire space 50-300mm
Cross wire space 12.5mm-300mm
Width of mesh Max.2.5m
Length of mesh Max.6m
Welding electrodes 48pcs
Welding speed 50-75 times/min
Rated electrical power 125kva*6pcs
Needed power Min.160kva
Weight 3T
