Full Automatic Fence Panel Making Machine , Double Wire Fence Welded Wire Mesh Machine

I'm Online Chat Now

Full Automatic Fence Panel Making Machine , Double Wire Fence Welded Wire Mesh Machine

China Full Automatic Fence Panel Making Machine , Double Wire Fence  Welded Wire Mesh Machine supplier
Full Automatic Fence Panel Making Machine , Double Wire Fence  Welded Wire Mesh Machine supplier Full Automatic Fence Panel Making Machine , Double Wire Fence  Welded Wire Mesh Machine supplier Full Automatic Fence Panel Making Machine , Double Wire Fence  Welded Wire Mesh Machine supplier Full Automatic Fence Panel Making Machine , Double Wire Fence  Welded Wire Mesh Machine supplier

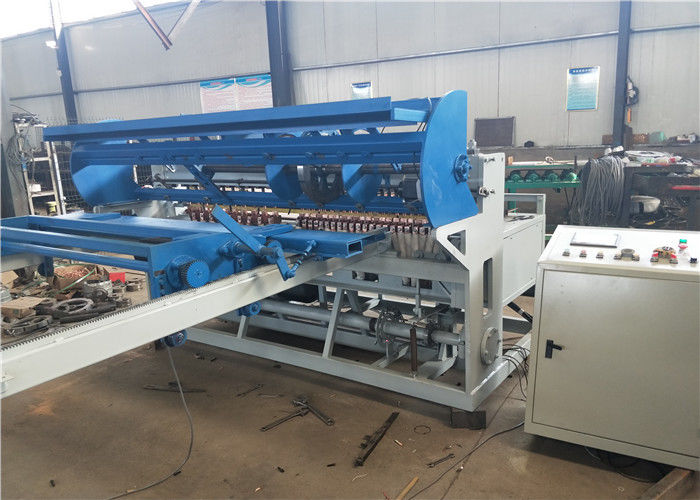

Large Image :  Full Automatic Fence Panel Making Machine , Double Wire Fence Welded Wire Mesh Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-FM-2500Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Product Name: Double Wire Fence Mesh Welding Machine Color: Blue,white
Warranty: 1 Year After-sales: Overseas Service Provided
Condition: New Usage: Industrial Mesh Fence Mesh And Light Mesh

 Full Automatic Double Wire Fence Mesh Welding Machine CK - FM - 2500Q





Description


1. Our machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system . The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, times welding

2. Per-cut line wire by manual feeding, per-cut cross wires auto feeding with the high production rate,which keep the mesh surface is very flat. The hopper adopts the steeping motor control ,brake motor wheels and the cross wire will fallen automatically from the hopper.

3. The greatest advantage is that you can adjust the distance of cross wire at random on the same wire mesh panel very easily, and only need to set the any space required on the touch screen.

4. Our transformers adopts big power at 125KVA every one,which can ensure the welding quality in good condition and adopt water cooling system. Our clients are very satisfied with our new development.


peculiarity


1. PLC PROGRAM SYSTEM

2 Touch screen and keyboard

3 step motor hopper ,brake motol wheels

4 step motor pulling wire mesh


application


Widely used in China's roads, railways, highways, railways closed network, living area fence, field fence, the zone isolation network, etc.



parameters



wire diameter 2.5-6mm
longitude wire space 50-300mm
cross wire space 25-300mm
width of mesh up to 2500mm
rated voltage buyer demand
welding electrode 48 pcs
welding speed 45times/minute
rated electrical power 85kva*6pcs



Full Automatic Fence Panel Making Machine , Double Wire Fence  Welded Wire Mesh MachineFull Automatic Fence Panel Making Machine , Double Wire Fence  Welded Wire Mesh MachineFull Automatic Fence Panel Making Machine , Double Wire Fence  Welded Wire Mesh Machine
