Product Details:
Payment & Shipping Terms:
|
| Brand Name: | Automatic Wire Mesh Welding Machine Mesh Welder Welding Machine High Automation | Condition: | New |
|---|---|---|---|
| Color: | Customized | Voltage: | 380v |
| Control: | PLC | Warranty: | One Year |

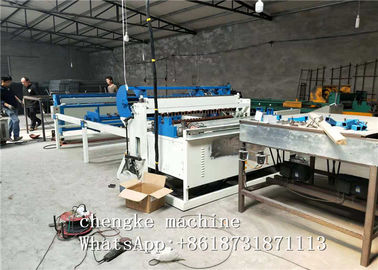

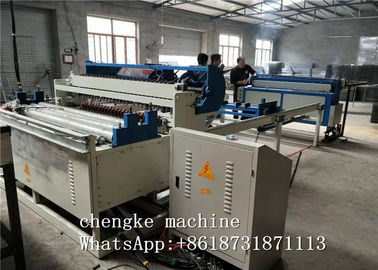

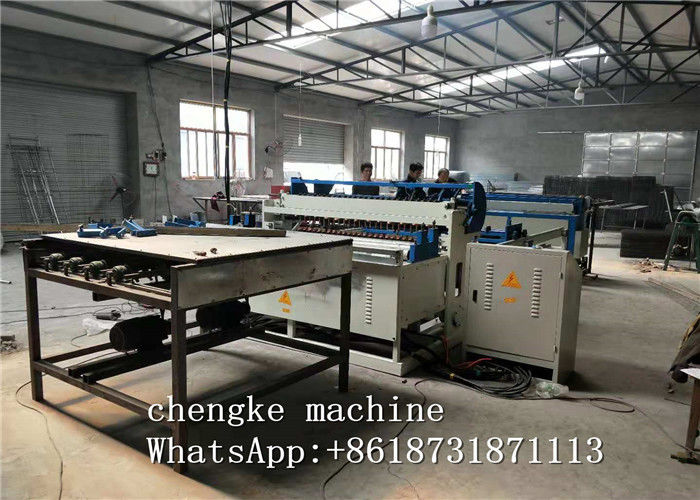

Automatic Wire Mesh Welding Machine Mesh Welder Welding Machine High Automation
description
Fence mesh welding line, also called security fence machine, anti-climb fence welding machine, used to make fence mesh, road mesh, reinforcing mesh, shelf, explosion-proof wall etc.
Machine Advantage:
1. Panasonic, Schneider, ABB, SMC, Igus electric components.
2. Touch screen interface.
3. PLC control of cross wire space and welding current.
4. Pre-straightened & pre-cut wires.
5. Panasonic servo technology for mesh pulling.
6. Pure welding electrodes, upper Φ20*120mm, lower 20*20*20mm.
7. Water-cooling system.
8. Brake motor & reducer connect the principal axis directly.
9. High precision mesh
peculiarity
1. Using servo motor control network pull, improve the accuracy of the grid.
2. Using rack and pinion transmission, transmission efficiency.
3. The grid can vary according to different needs.
4. Splash small, low burn marks, improve the appearance of the net panel.
5. Working speed, work stability, improve productivity.
parameters
| Automatic Wire Mesh Welding Machine Mesh Welder Welding Machine High Automation | |
| Wire diameter | 3-6mm |
| Longitude wire space | 50-300mm |
| Cross wire space | 25-300mm |
| Net width | Max.1200(Can be customized) |
| Rated voltage | 380V/220V/415V/440V,50HZ/60HZ as required |
| Rated power | ≥125KVA*X+motor power |
| Welding speed | 75-85 times/min |
| Weight | 3T |
| The Wire Mesh Welding Machine is also able to be made to order according to customer’s requirement. | |
