Product Details:
Payment & Shipping Terms:
|
| Brand Name: | Automatic Swing Construction Welding Machine | Condition: | New |
|---|---|---|---|
| Color: | Customized | Voltage: | 380v |
| Control: | PLC | Warranty: | One Year |

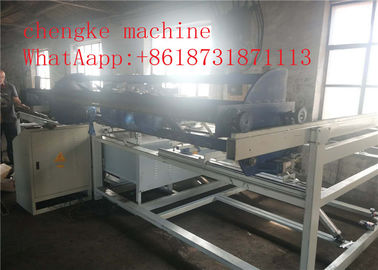

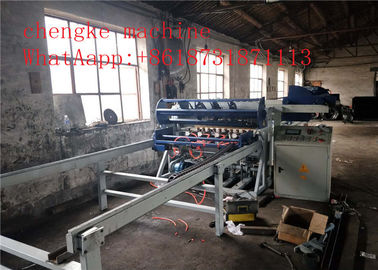

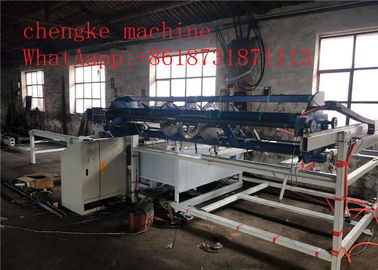

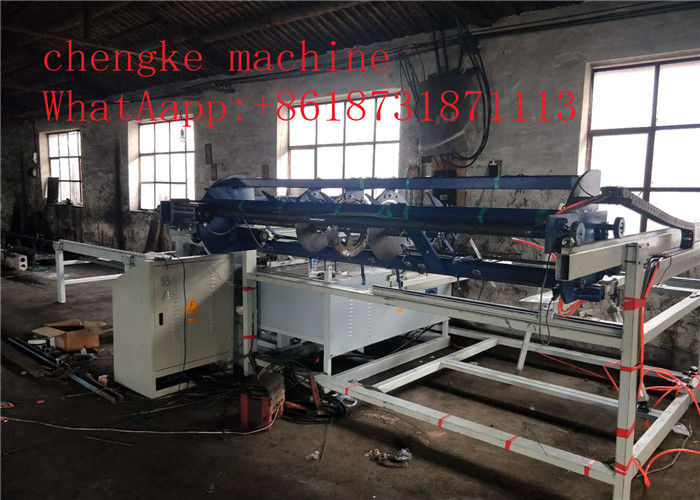

Automatic Swing Wire Fence Mesh Welding Machine Construction welding machine
description
1.Wire diameter: 3-6mm
2.Line wire from: pre-straightening and pre-cutting wire
Cross wire from: pre-straightening and pre-cutting wire
3.Control system :synchronous with PLC control ,touch screen board
4.Cross feeding system :automatic falling controlled by step motor
5.Advantage: welding different size mesh on the same wire mesh panel.
6. Firm welding, Little noise, High speed
peculiarity
1. Using servo motor control network pull, improve the accuracy of the grid.
2. Using rack and pinion transmission, transmission efficiency.
3. The grid can vary according to different needs.
4. Splash small, low burn marks, improve the appearance of the net panel.
5. Working speed, work stability, improve productivity.
parameters
| Automatic Swing Wire Fence Mesh Welding Machine Construction welding machine | |
| Wire diameter | 3-6mm |
| Longitude wire space | 50-300mm |
| Cross wire space | 25-300mm |
| Net width | Max.1200(Can be customized) |
| Rated voltage | 380V/220V/415V/440V,50HZ/60HZ as required |
| Rated power | ≥125KVA*X+motor power |
| Welding speed | 75-85 times/min |
| Weight | 3T |
| The Wire Mesh Welding Machine is also able to be made to order according to customer’s requirement. | |
