Product Details:
Payment & Shipping Terms:
|
| Color: | Customer's Requirment | Wire Diameter: | 3-6mm |
|---|---|---|---|
| Product Name: | Building Constrction Mesh Sheet Welded Machine | After-sales: | Engineers Available To Service Machinery Overseas |
| Mesh Hole: | 50-200mm | Speed: | 50-80Times/min |
| High Light: | wire mesh weaving machine,wire netting machine |
||

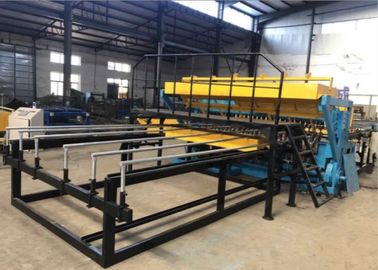

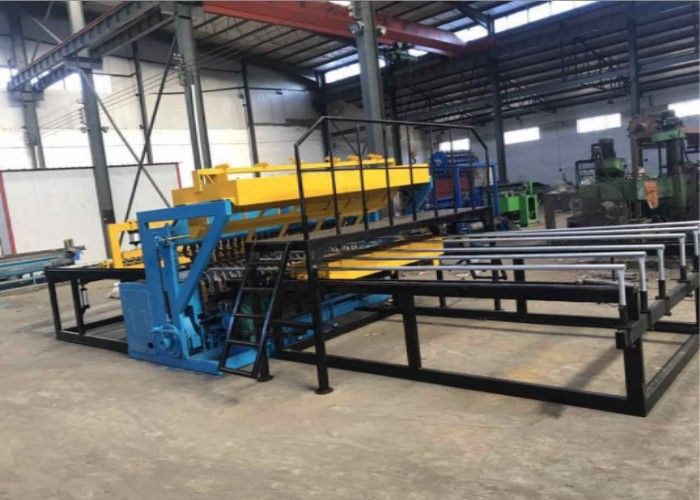

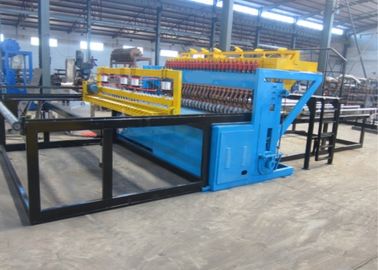

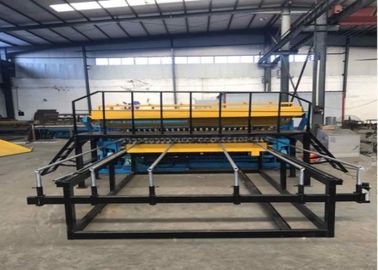

Building Constrction Mesh Sheet Welded Machine Can Be Customized
Description
1. Full automatic stirrup feeding and bending system ( CNC ).
2. Moveable air compressor design, to ensure better cooling effect, easy transportation and installation
3. High power feeding motor to ensure bending bar accuracy.
4. Bending arm driven by servo motor can protrude or draw back while bending different angles, whshen cutting system receives signal,
5. High quality special material and high treatment to make straightening wheels, traction wheels, the metering wheel, longer life with lower operating costs
6. Touch-screen console, easy to operate, more fasteasy adjustment and maintenance, and more security and fast.
Features
1. The main frame is welded with thick steel plate and section bar, making the main structure more solid and compact.
2. All key parts are made of alloys with heat treatment applied to achieve a very high hardness. Furthermore, the special anti-corrosion treatment is applied for the surface to ensure smooth operation of the parts while preventing corrosion.
3. The welding products are of diversity and the machine can be set according to different production requirements of various kinds, bring flexibility and versatility for customers.
4. The welding adopts new-type high-efficiency welding transformer, which is much more efficient and can make the welding spot more solid compared with traditional transformer.
5. The electric appliances and pneumatic components are all adopt famous brand from foreign countries.
6. Fool-style operation, no matter what kind of operation personnel can easily operate it.
7. About the mesh flatness, this production line adopts the unique welding craft and sophisticated welding control system as well as high-quality copper-cobalt alloy electrodes with special shape, all of which can ensure the flatness of mesh.
parameters
| Building Constrction Mesh Sheet Welded Machine Can Be Customized | ||||
| Item | CK-1200 | CK-1600 | CK-2100 | CK-2500 |
| Number of Electrodes | 24 | 32 | 40 | 48 |
| Max. Mesh Width | 1200mm | 1600mm | 2100mm | 2500mm |
| Wire Diameter | 3-5mm | 3-5mm | 3-5mm | 3-5mm |
| Mesh Length | 3-12m | 3-12m | 3-12m | 3-12m |
| Cross Wire Space | 50-200mm | 50-200mm | 50-200mm | 50-200mm |
| Line Wire Space | 50-200mm | 50-200mm | 50-200mm | 50-200mm |
| Electric Capacity | ≥160KVA | ≥160KVA | ≥160KVA | ≥160KVA |
| Welding Speed | 60t/min | 60t/min | 60t/min | 60t/min |
| Control System | PLC Control | PLC Control | PLC Control | PLC Control |
| Special specification is available according to your requirements. | ||||
