| Color: | Customer's Requirment | Condition: | New |
|---|---|---|---|
| Product Name: | One Person Can Operate The Construction Mesh Welding Machine | After-sales: | Engineers Available To Service Machinery Overseas |
| Warranty: | 1 Year | Control System: | PLC |
| High Light: | welded wire mesh machine,wire mesh weaving machine |
||

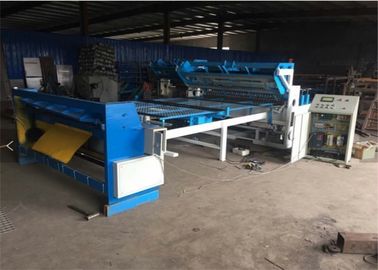

One Person Can Operate The Construction Mesh Welding Machine Fool - style Operation
Description
1. The high quality best price building welded mesh weldinelectronic syschronous control technique both welding time and cent-control welding is composed of digital and integrated electric circuit.
2. Cross wires of high quality best price building welded mesh welding machine are needed to be pre-straightened and cut ,then put into the cross wire hopper.Step motor in the hopper controls fetching the cross wire and feeding the cross wires into welding automatically.
3. This high quality best price building welded mesh welding machine can produce both the mesh panel and roll.
4. If you want to produce the mesh in panel, you need one cut machine to cut into length required. If you want the mesh in roll, you will need one roller to coil the mesh .
Electric Cabinet
1. The main frame is welded with thick steel plate and section bar, making the main structure more solid and compact.
2. All key parts are made of alloys with heat treatment applied to achieve a very high hardness. Furthermore, the special anti-corrosion treatment is applied for the surface to ensure smooth operation of the parts while preventing corrosion.
3. The welding products are of diversity and the machine can be set according to different production requirements of various kinds, bring flexibility and versatility for customers.
4. The welding adopts new-type high-efficiency welding transformer, which is much more efficient and can make the welding spot more solid compared with traditional transformer.
5.The electric appliances and pneumatic components are all adopt famous brand from foreign countries.
6.Fool-style operation, no matter what kind of operation personnel can easily operate it.
7.About the mesh flatness, this production line adopts the unique welding craft and sophisticated welding control system as well as high-quality copper-cobalt alloy electrodes with special shape, all of which can ensure the flatness of mesh.
parameters
|
Wire diameter
|
3.0-5.0mm
|
Line wire space
|
50-200mm
|
|
Cross wire space
|
50-200mm
|
Line wire form
|
Coil
|
|
Cross wire form
|
Pre-straight and cut
|
Mesh width
|
1200-3000mm
|
|
Welding speed
Main performance parameters
|
50-60t/min
|
Finished mesh
|
Roll and Panel
|
|
Usage
|
Construction mesh
|
Weight
|
3.5T
|
Usage
Highway, railway and various function of protection. For construction which used for basis of high building, roof mesh, floor mesh. It is also widely used in agriculture and poultry mesh, farming mesh and so on.
