Energy Saving Automatic Wire Mesh Welding Machine Power Capacity 160 KVA High Productivity

I'm Online Chat Now

Energy Saving Automatic Wire Mesh Welding Machine Power Capacity 160 KVA High Productivity

China Energy Saving Automatic Wire Mesh Welding Machine Power Capacity 160 KVA High Productivity supplier
Energy Saving Automatic Wire Mesh Welding Machine Power Capacity 160 KVA High Productivity supplier Energy Saving Automatic Wire Mesh Welding Machine Power Capacity 160 KVA High Productivity supplier Energy Saving Automatic Wire Mesh Welding Machine Power Capacity 160 KVA High Productivity supplier Energy Saving Automatic Wire Mesh Welding Machine Power Capacity 160 KVA High Productivity supplier

Large Image :  Energy Saving Automatic Wire Mesh Welding Machine Power Capacity 160 KVA High Productivity

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK - BM - 780

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Nude
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 Sets
Contact Now
Detailed Product Description
Color: Customer's Requirment Wire Diameter: 1.5-3.0mm
Warranty: 1 Year Product Name: Automatic Wire Mesh Welding Machine For Making Brick Force Wire
Condition: New After-sales: Engineers Available To Service Machinery Overseas
High Light:

steel grating welding machine

,

rebar mesh welding machine

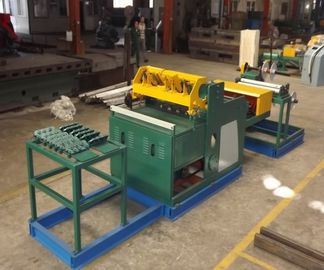

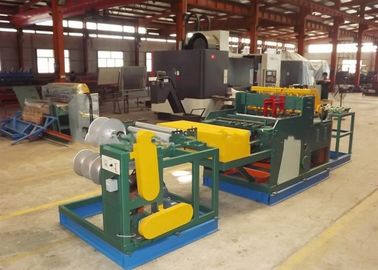

Automatic Wire Mesh Welding Machine For Making Brick Force Wire





Description



Brick Force Mesh Welding Machine's main features are: bar for wire plate into the expected, the horizontal line is broken wires into the material, can out of the four web plate at the same time, continuous production volume mesh. Brick force mesh welding machine main function structure are: bar straightening mechanism, locating mechanism of ordinate, horizontal hopper Mechanical Seine institutions, locating mechanism of grid, mesh segmentation device, network device.



Features



1. This kind machine is used to make wire mesh for brick reinforcement and it is widely in
Africa area. It is controlled by intergrated electric circuit. Not only welding speed is fast but
also it is easy to learn and operate.

2. Cross wire is pre straightened and pre cut by wire straightening and cutting machine. Cross
wire feeding device is driven by step motor which make the hole accurate. Line wire is in coil

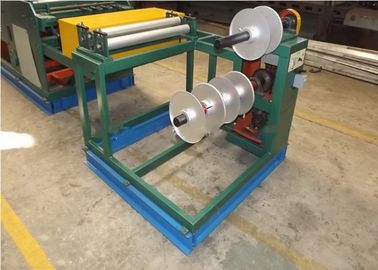

and straightened by wire straightening wheel. Line wire distance can be adjusted by moving

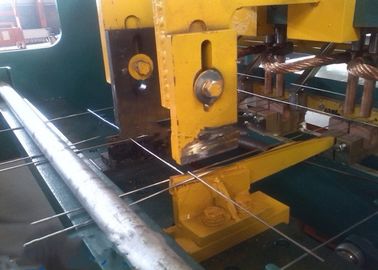

the electrode and cross wire distance can be adjusted by operating the PLC panel. And the
mesh pulling device is also driven by step motor which make the aperture accurate.

3. Both machine could produce three or four pieces of wire mesh at the same time.Each piece
of mesh have 8mm extra length at both side.

4. The available wire is black wire or galvanized wire.

5. Finished product can be in roll or in panel.



Specification



Automatic Wire Mesh Welding Machine For Making Brick Force Wire

Number of electrodes 8 or 6
Max mesh width 780 mm
Wire diameter 1 . 5 - 3 . o mm
Cross wire space 75 , 115 , 150 , 230 mm
Line wire space 300 mm
Power capacity 160 KVA
Welding speed 30 - 40 nips/minute
Control system PLC control
