Coal Mine Mesh Wire Mesh Roll Welding Machine , 3 - 8mm Rebar Mesh Welding Machine

I'm Online Chat Now

Coal Mine Mesh Wire Mesh Roll Welding Machine , 3 - 8mm Rebar Mesh Welding Machine

China Coal Mine Mesh Wire Mesh Roll Welding Machine , 3 - 8mm Rebar Mesh Welding Machine supplier
Coal Mine Mesh Wire Mesh Roll Welding Machine , 3 - 8mm Rebar Mesh Welding Machine supplier Coal Mine Mesh Wire Mesh Roll Welding Machine , 3 - 8mm Rebar Mesh Welding Machine supplier Coal Mine Mesh Wire Mesh Roll Welding Machine , 3 - 8mm Rebar Mesh Welding Machine supplier Coal Mine Mesh Wire Mesh Roll Welding Machine , 3 - 8mm Rebar Mesh Welding Machine supplier

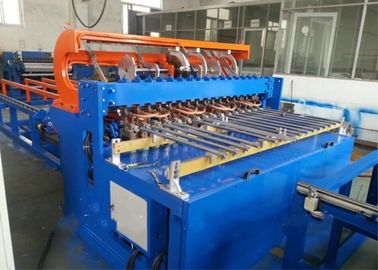

Large Image :  Coal Mine Mesh Wire Mesh Roll Welding Machine , 3 - 8mm Rebar Mesh Welding Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK - WW - 1500Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Nude
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 Sets
Contact Now
Detailed Product Description
Color: Customer's Requirment Wire Diameter: 3-8mm
Warranty: 1 Year Product Name: Automatic Wire Mesh Welding Machine
Condition: New After-sales: Engineers Available To Service Machinery Overseas

Automatic Wire Mesh Welding Machine Making Coal Mine Support Mesh





Description



1. The new type wear silk device.

2. More convenient for manually threading wires.

3. Saving time and effort.



Features



1. Adopts bottom electrode and threading device connected structure, the adjusting of line wire distance is more convenient and efficient, and the top electrode and bottom electrode adopts circulating water cooling treatment.

2. The water cooling transformer is produced by domestic professional manufacturer.

3. It adopts program which can adjust the current and welding time.

4. It is easier and more convenient to operate.

5. It adopts PLC which can control step motor pulling mesh device.

6. The pulling mesh size is more accurate.

7. The cross wire space is set though PLC and touch screen.

8. The operator interface is more humane.



Specification



Wire diameter 3.0-8.0mm Line wire distance ≥50mm(unlimited adjustment)
Width of mesh 1600mm Cross wire distance 50-300mm
Welding Power 125KVA × 4 Rated voltage 380V 3P 50HZ
Welding speed 60-70times/min Number of electrodes 32
Main motor power 4.0KW(inverter braking) Welding head diameter 24mm
Overall dimension 2300×6500×1700mm Weight 4.5T
