Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cattle Fence Machine | Color: | Customer Requirements |
|---|---|---|---|
| Wire Diameter: | 1.9-2.5 Mm | Edge Diameter: | 2.0-3.5 Mm |
| After-sales: | Overseas Service Provided | Condition: | New |
| High Light: | automatic chain link fence machine,field fence machine |
||

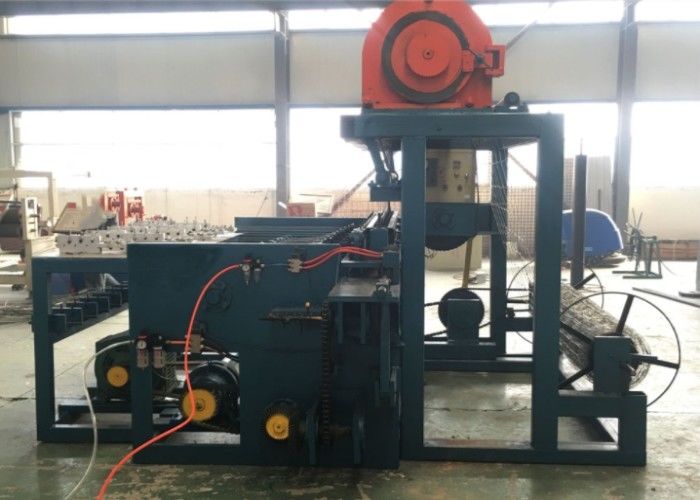

Grassland Fence Machine / Hinge joint knot weaving field fence machine / cattle fence machine
presentation
It can weave the weft and warp wire automatically together to form the field fences.
The finished products enjoy innovative structure, firm and precise weaving.
This machine offers reliable property, high efficient, sample operation, low-cost maintenance.
Material:galvanized wire, low-carbon steel wire, steel wire, iron wire.
advantages
Grassland fence made of high strength galvanized steel wire braided, high tensile strength large, can withstand violent impact cattle, horses, sheep and other livestock, safe and reliable.Steel wire, galvanized surround surface, other parts are rust and corrosion measures taken, can adapt to harsh working conditions, life expectancy up to 20 years.braid weft take rolling wave technology, enhancing the elasticity and buffering function, can adapt to thermal expansion and contraction of the deformation, so that fence always keep up tight state.Simple structure, easy maintenance, short construction period, small size, light weight, easy transportation and installation, air and light does not affect the landscape.
Parameters
| Width | 1422mm | 1880mm | 2000mm | 2400mm |
| motor | 5.5kw | 7.5kw | 7.5kw | 11kw |
| Dimension | 2.8*3.2*2.4(m) | 3.3*3.2*2.4(m) | 3.4*3.2*2.4(m) | 3.9*3.4*2.4(m) |
| Efficiency | ≤45rows/min | ≤45row/smin | ≤45rows/min | ≤45rows/min |
| Twine diameter | 1.9-2.5(mm) | 1.9-2.5(mm) | 1.9-2.5(mm) | 1.9-2.5(mm) |
| Side wire diameter | 2.0-3.5(mm) | 2.0-3.5(mm) | 2.0-3.5(mm) | 2.0-3.5(mm) |
| Voltage | 3-phase380v50HZ | 3-phase380v50HZ | 3-Phase380v50HZ | 3-Phase380v50HZ |
| Weight | 3.0T | 3.5T | 4.0T | 4.5T |
| Maximum line wire number | 11 | 13 | 18 | 23 |
| Minimum line wire opening | 75mm | 75mm | 75mm | 75mm |
| The weft opening |
100mm,200mm,300 mm 0r 150mm,300 mm |
100mm,200mm,300 mm 0r 150mm,300 mm |
100mm,200mm,300 mm Or 150mm,300 mm
|
100mm,200mm,300 mm 0r 150mm,300 mm |
used
Zoo fence Construction site fences backyard birds slope greening landscape with a net, a wildlife park grassland pasture and other places of grazing in captivity, especially applied in the pasture fence project, for a rotational grazing grassland protection, can play an important role, can also be used for rare flowers The isolation protection forest planting zone.
