Save Power Grassland Fence Machine Safe Easy Operation Long Service Life

I'm Online Chat Now

Save Power Grassland Fence Machine Safe Easy Operation Long Service Life

China Save Power Grassland Fence Machine Safe Easy Operation Long Service Life supplier
Save Power Grassland Fence Machine Safe Easy Operation Long Service Life supplier Save Power Grassland Fence Machine Safe Easy Operation Long Service Life supplier Save Power Grassland Fence Machine Safe Easy Operation Long Service Life supplier Save Power Grassland Fence Machine Safe Easy Operation Long Service Life supplier

Large Image :  Save Power Grassland Fence Machine Safe Easy Operation Long Service Life

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-GF

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Sets
Contact Now
Detailed Product Description
Product Name: Anti - Corrosive Fix Knot Grassland Fence Machine Warranty: 1 Year
Wire Diameter: 1.9-2.5 Mm Edge Diameter: 2.0-3.5 Mm
After-sales: Overseas Service Provided Condition: New
High Light:

cattle fence machine

,

field fence machine

Anti - Corrosive Fix Knot Grassland Fence Machine Easy Operation Safe Reliable





presentation

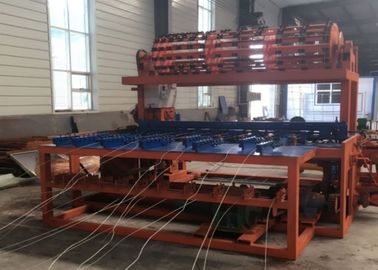

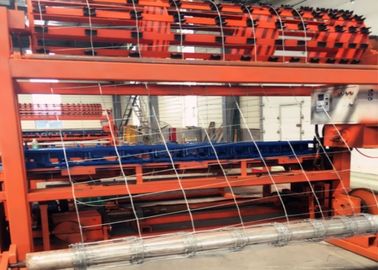

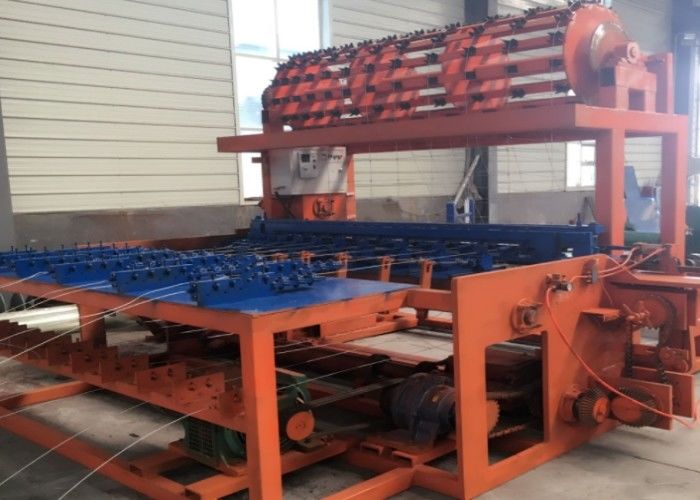

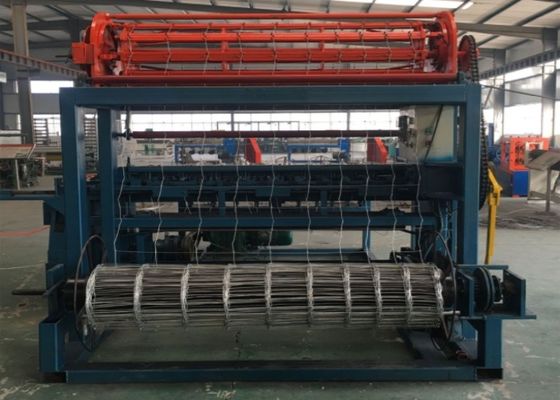

grassland fence machine is to use sophisticated computer control, advanced production technology. It has feather novelty, high degree or automation, operation safety and reliability, easy operation, long life and competitive prices etc. Products are neat and beautiful, diverse specification.Normally the fence is from 0.6-2.4m width but special size also can be done as requested.It can automaticly twist and weave the wire in wrap around type, which makes the fence more beautiful and strong than other classfic mesh fences such as welded wire mesh.


advantages



Grassland fence made of high strength galvanized steel wire braided, high tensile strength large, can withstand violent impact cattle, horses, sheep and other livestock, safe and reliable.Steel wire, galvanized surround surface, other parts are rust and corrosion measures taken, can adapt to harsh working conditions, life expectancy up to 20 years.braid weft take rolling wave technology, enhancing the elasticity and buffering function, can adapt to thermal expansion and contraction of the deformation, so that fence always keep up tight state.Simple structure, easy maintenance, short construction period, small size, light weight, easy transportation and installation, air and light does not affect the landscape.



used



Zoo fence Construction site fences backyard birds slope greening landscape with a net, a wildlife park grassland pasture and other places of grazing in captivity, especially applied in the pasture fence project, for a rotational grazing grassland protection, can play an important role, can also be used for rare flowers The isolation protection forest planting zone.



Parameters



Anti - Corrosive Fix Knot Grassland Fence Machine Easy Operation Safe Reliable
ITEM MODEL HR-2400
MATERIALS Galvanized iron Wire, steel wire
PRODUCTIVITY 45 row/min
POWER 11KW
VOLTAGE 380VX3phase
WEIGHT 3.5T
DIMENSION(L×W×H) 3.7×3.2×2.4M
MAXIMUM MESH WIDTH 2400mm
MOTOR CAPCITY 11kw Electromagnetism Governing-speed Motor
MAXIMUM WARP WIRE NUMBER 21
WARP OPENING 15x10cm+2x15cm+3x20cm
SCOPE OF WEFT OPINING 2"-24" (adding 50mm per times)
TWINE DIAMETER 1.8-2.5(mm)
SIDE WIRE DIAMETER 1.9-3.5(mm)
EASY DAMAGE PARTS Lip cutter, Twist mould & Sensor Switch
GUARANTEE PERIOD 1 year after Install and set up the new equipments
NOTE: Special specification models can be customized according to customer requirements.
