Low Carbon Wire Chain Link Fence Machine Woven Wire Diameter 1.5 - 4.5 MM

I'm Online Chat Now

Low Carbon Wire Chain Link Fence Machine Woven Wire Diameter 1.5 - 4.5 MM

China Low Carbon Wire Chain Link Fence Machine Woven Wire Diameter 1.5 - 4.5 MM supplier
Low Carbon Wire Chain Link Fence Machine Woven Wire Diameter 1.5 - 4.5 MM supplier Low Carbon Wire Chain Link Fence Machine Woven Wire Diameter 1.5 - 4.5 MM supplier Low Carbon Wire Chain Link Fence Machine Woven Wire Diameter 1.5 - 4.5 MM supplier Low Carbon Wire Chain Link Fence Machine Woven Wire Diameter 1.5 - 4.5 MM supplier

Large Image :  Low Carbon Wire Chain Link Fence Machine Woven Wire Diameter 1.5 - 4.5 MM

Product Details:

Place of Origin: Hebei China
Brand Name: Chengke
Certification: ISO
Model Number: CK - CL - 1Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: With plastic
Delivery Time: 15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25
Contact Now
Detailed Product Description
Product Name: Galvanize Double Wire Chain Link Fence Weaving Machine Woven Wire Diameter: 1.5-4.5 MM
Power: 5.5 KW After Sales: Engineers Available To Service Overseas
Warranty: 1 Year Color: Green,blue,yellow
High Light:

fence making equipment

,

chain link weaving machine

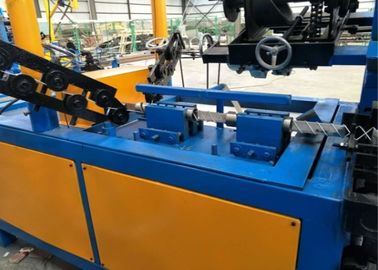

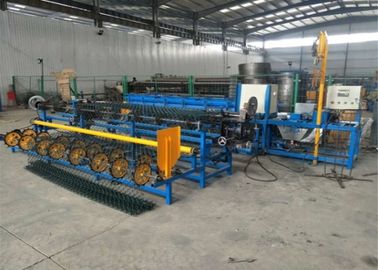

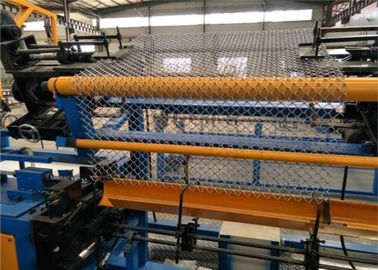

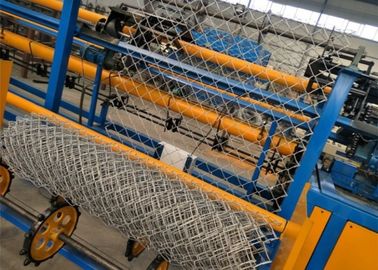

Galvanize / Low Carbon / Stainless Steel Wire Chain Link Fence Machine





presentation



l Fully automatic CNC controlled high output machine for the production of chain link fence.

l It adopts double wires feeding principle according to German technology. As so, the production capacity is greatly improved and the machine saves the material best.

l It Can automatically complete the spinning, wearing mesh, cutting wire, bending side, twisting side,rolling mesh and compacting mesh automatically. simple operation, easy to master the technology.



Features



1. The production efficiency is about twice of the same species.
2. The fault is the lowest in the same species.
3. The machine is easy and simple to handle.The worker has the common mechanical knowledge can master it in one hour.
4. The loss of the raw materials of the same species is 5%-7%, while the JL-2000 chain link fence machine is nearly zero.
5. The electrical energy the chain fence link making machine can save is about20%.
6. It is suitable to all kinds of mild steel wires.



parameters



Wire diameter 1.80-5.0mm
Mesh Aperture 30*30-100*100mm
Width 600-4000mm
Max Roll Length 30m
Feeding wire number double wires
Capacity 80-100m2/hour
Materials

electric galvanized wires or hot,dipped galvanized wires or pvc wires

or stainless wire

Voltage 380V,50Hz,three phase
Total Power 6.5KW
color green,blue,yellow



Usage



Chicken fence, poultry fence and zoo enclosure, construction, mechanical equipment protection, sports ground fence, railway guard, green belt fence,etc.
