Product Details:
Payment & Shipping Terms:
|
| Product Name: | 6 - 40 MM Auto Reinforced Steel Bar Bending Machine | Color: | Customer's Requirment |
|---|---|---|---|
| Raw Material: | Steel Bar | After-sales: | Overseas Service Provided |
| Speed: | 1420 R/min | Warrany: | 1 Year |
| High Light: | automatic steel bar bending machine,rebar bending equipment |
||

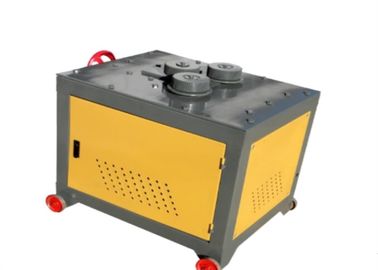

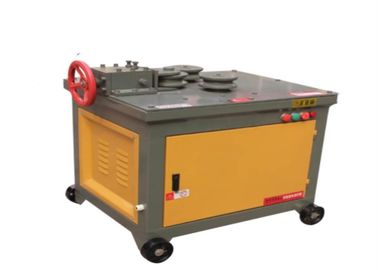

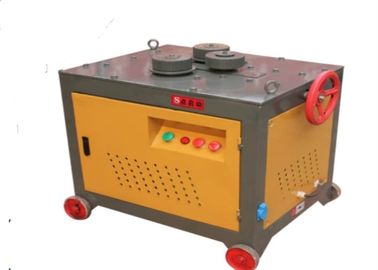

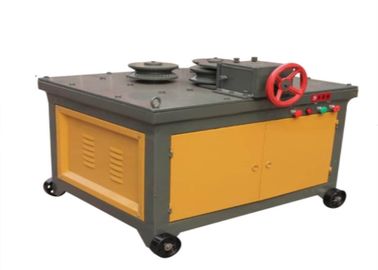

6 - 40 MM Auto Reinforced Steel Bar Bending Machine Small Size And Easy To Move
Description
One of the steel bending machine, steel processing machinery Working organs is a on the vertical shaft rotating disc level work, the steel bar in the dotted line in the figure, supporting pin shaft fixed on the machine tool, center pin shaft and the bent pin on disc in work, the disc rotation will be reinforced bending To bend all kinds of diameter of reinforcing steel bar, there are several holes in the working plate, to bending pin, can also be the center of the diameter of pin shaft changes accordingly
Advantages
1. Easy to operate, no need training
2. Safety performance with fully automatic bars bending
3. Angle range is between 0°and 360°, with 90°and 135°two foot switches for angle change easily.
4. Fast speed with bending speed between 25-30 times/min, can bend 500-600 pieces stirrups, 2-3 times faster than manual bending 6-8mm stirrups and 4-5 times faster than manual bending 10-14mm stirrups
information
| Model No | GW40 | GW50 |
| Bend round steel | 6-40mm | 6-50mm |
| Bend HRB400 steel | 6-32mm | 6-42mm |
| Woking disk diameter | 340mm | 410mm |
| Adjustable bending speed | 5-10r/min | 5-10r/min |
| Motor power | 3kw | 4kw |
| Motor speed | 1420r/min | 1420r/min |
| Packing size | 900*900*950mm | 1000*950*1060mm |
| G.W./N.W. | 385kgs/345kgs | 440kgs/400kgs |
Used
it is widely used in construction site for bending the steel bar to kinds of geometry shaps
