Product Details:
Payment & Shipping Terms:
|
| Product Name: | Water Tank Steel Wire Drawing Machine | Power Source: | 380 V, 50 HZ |
|---|---|---|---|
| Motor Power: | 11KW | Warranty: | 1 Year |
| After-sales: | Overseas Service Provided | Capacity: | 420 M/min |
| High Light: | stainless steel wire drawing machine,continuous wire drawing machine |
||

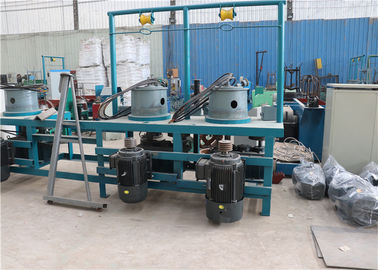

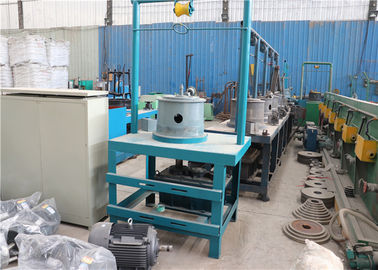

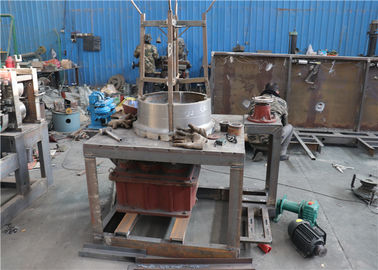

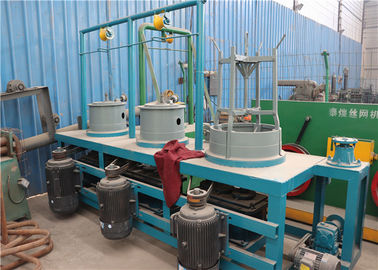

6 mm - 2 . 5 mm Wire drawing Machine Automatic , High Speed , Good Operation
description
By the main reducer, mould box, wheel frame, the line and the electrical control system, etc By motor through a gear shaft driving all the drawing drum level 2 different ratio of cylindrical gear reducer, so that the drum rotating work, drawing drum is vertical, installed on the cover of housing, gear pair with oil lubrication Drum wall equipment cooling water spray device, to reduce after drawing wire residual heat on the surface of the drum, die immersed in water, to reduce the working temperature of the mold
Features
1. Drive System
The way of transmission for wire drawing machine is by: Variable frequency motor + Narrow v-belt + Decelerator with hardness gear surface + Narrow v-belt to drive the block.
2. Block
Block is accurately founded by cast steel, re-tempering treatment after the rough processing, the work surface of block is welded by wear-resisting piano wire then sprayed with carbide tungsten, then finish machined by a grinding machine. The block working surface rigidity is over HRC60. The inside surface of block is sprayed with Aluminum.
Block inside adopts narrow gap type water cooling while block outside adopt concentrate air cooling. All blocks are fixed with leaning rollers.
3. Die box
All are normal die boxes(die dimension should be offered by client). Die box is cooled directly by water.
Tuning roller is driven by cylinder. Die box can be adjusted up to down, front to back, left to right agility and can be fixed. The screw in top and nut for die box are both made of tin bronze. Hard alloy made direction guiding die is fixed at die box inlet.
4. Gearbox
The chief bearings for gearbox with hard gear surface adopt products from Japanese NSK. All gearboxes are filled with VG220 compound gear oil before leaving factory.
5. Safety cover
On the top of each block there is a safety cover, which needs to close before the equipment start up. If the cover is open, the equipment can only run in slow speed. The safety cover has covered the total front of operation side and have daylight lamp inside for illuming use. Safety cover is controlled by spring.
6. Lubricating
Electric driven grease pump is fixed, which can automatically fill oil into the chief shaft bearing of block.
7. Take-up
The coiler take-up adopts frequency conversion motor drive, to achieve no-parking taking up. There are two rows of slide rail on the bottom of bearing frame, to easy to replace the frame. (The size of bearing frame is provided by the user).
parameters
|
No. |
Name |
Unit |
Line 1 |
Line 2 |
|
1 |
Name of machine |
|
LW-4/560 |
LW-9/560 |
|
2 |
Way of drawing |
|
Pulley-type |
Pulley-type |
|
3 |
Number of block |
|
4 |
9 |
|
4 |
Block diameter |
mm |
4 * φ 560 |
9 * φ 560 |
|
5 |
Way of timing |
|
AC frequency conversion timing |
AC frequency conversion timing |
|
6 |
Motor power |
KW |
4*30 |
9*18.5 |
|
7 |
Diameter of inlet wire |
mm |
φ6.5(φ6.5) |
φ4.0 |
|
8 |
Diameter of outlet wire |
mm |
φ4.0 |
φ1.6 |
|
9 |
Designed drawing speed |
m/min |
≤ 110 |
≤ 210 |
|
10 |
Way of control |
|
Total digital |
Total digital |
|
11 |
Material of inlet wire |
|
High & Medium & Low carbon steel wire |
High & Medium & Low carbon steel wire |
|
12 |
Way of pay-off |
|
Rotating wheel pay-off |
Rotating wheel pay-off |
|
13 |
Motor power of pay-off |
KW |
11 |
11 |
|
14 |
Way of take-up |
|
Φ630 horizontal spooler |
Φ630 horizontal spooler |
|
15 |
Operation direction |
|
From left to right |
From left to right |
|
16 |
Power source |
|
380V, 50HZ |
380V, 50HZ |
