Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Inlet Diameter: | 4-6.5 Mm |
|---|---|---|---|
| Outlet Diameter: | 1.2-4.0 Mm | Warranty: | 1 Year |
| After-sales: | Overseas Service Provided | Quality: | Top Grade |
| High Light: | stainless steel wire drawing machine,metal drawing machine |
||

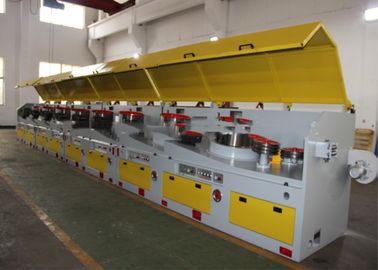

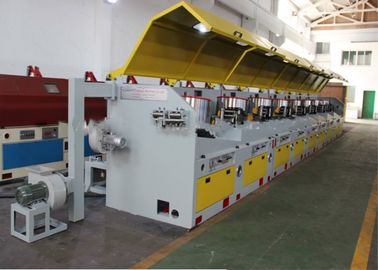

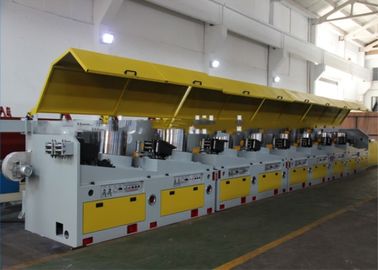

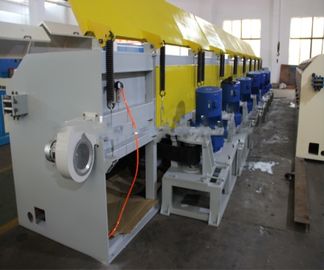

Automatic Straight Line Wire Drawing Machine High Speed Low Noise
description
Belong to pre processing equipment for the production of standard parts and other metal products, the purpose is to put the production by the steel manufacturer to standard parts and other metal products production enterprise of wire or rod through the wire drawing machine drawing processing, make the diameter of wire or rod inside the roundness metallographic structure surface finish and straightening degrees are required for standard parts and other metal products production of raw materials processing requirements so the pretreatment of the wire drawing machine wire or rod quality is directly related to standard parts and other metal products production enterprise product quality wire drawing machine belongs to the metal products industry metal wire drawing machine, wire drawing machine is widely used in steel wire rope of prestressed steel wire standard parts and other metal products production and processing
Features
1. The equipment contains the functions of human-machine dialogue, over-temperature protection for motor, alarm for abnormal water pressure, fault display.
2. It’s kind of high-efficient machine with easy operation, high degree of automation.
3. Between the drawing process without intermediate pulley and the guide wheel, it does not generate bending and torsion, and convenient threading
4. Straight line drawing machine suitable for drawing large diameter, high strength and special shaped steel wire
5.As the use of the frequency technology, changes in the larger context of patts of the compression ratio to meet the wide range of technology and high speed drawing.
6. There is no relative sliding between wire and capstan. The quality of finished wire is much better.
parameters
| Items | Unit | LZ9-12/1200 | LZ10/800 | LZ9/700 | LZ10/560 | LZ10/400 |
| Reel diameter | mm | 900 | 800 | 700 | 560 | 400 |
| Draw passage | time | 9-12 | 10 | 9 | 10 | 10 |
| Incoming dia | mm | Φ14-8 | Φ10-8 | Φ8-6.5 | Φ6.5-5.5 | Φ14-8 |
| Outgoing dia | mm | Φ5-3 | Φ4-3 | Φ3-2.5 | Φ2-1.8 | Φ1-0.8 |
| Wire darwing line | m/min | 300 | 360 | 480 | 720 | 840 |
| Incoming strength | Mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Total compressibility | % | 87.24-85.94 | 84-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24-84 |
| Average compressibility | % | 20.48-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-20.02 | 18.61-16.74 |
| Single motor power | Kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |
Usage
It is widely used in mechanical manufacturing, metal processing, petrochemical, plastic, bamboo and wood products, wire and cable industries.
