Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Color: | Customer's Requirment |
|---|---|---|---|
| Weigjt: | 1-3t | Warranty: | 1 Year |
| After-sales: | Overseas Service Provided | Quality: | Top Grade |
| High Light: | stainless steel wire drawing machine,metal drawing machine |
||

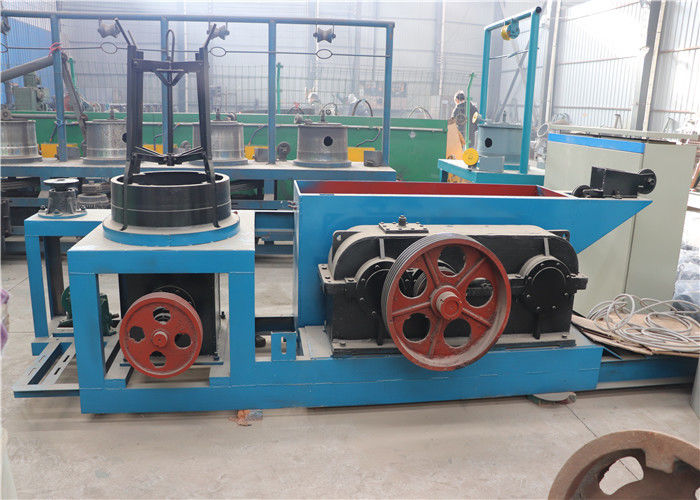

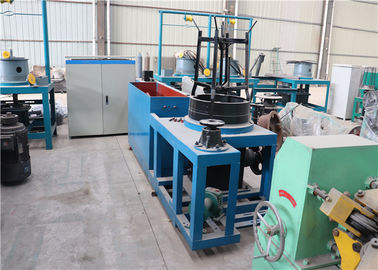

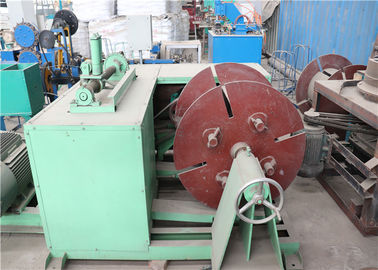

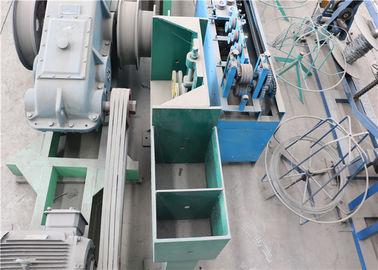

High / Low Carbon Steel Wire , Stainless Steel Wire Wire Drawing Machine
description
Belong to pre processing equipment for the production of standard parts and other metal products, the purpose is to put the production by the steel manufacturer to standard parts and other metal products production enterprise of wire or rod through the wire drawing machine drawing processing, make the diameter of wire or rod inside the roundness metallographic structure surface finish and straightening degrees are required for standard parts and other metal products production of raw materials processing requirements so the pretreatment of the wire drawing machine wire or rod quality is directly related to standard parts and other metal products production enterprise product quality wire drawing machine belongs to the metal products industry metal wire drawing machine, wire drawing machine is widely used in steel wire rope of prestressed steel wire standard parts and other metal products production and processing
Features
Wire drawing machine adopts PLC controller, it is easy to operate, one people can operate one production line.
Wire drawing machine include water seal cooling system, so the temperature of the machine will not to high, it is safe to the worker.
Wire drawing machine adopts frequency adjustable motor, the speed of the motor can be adjustable.
parameters
|
Items
|
Unit
|
LZ9-12/1200
|
LZ10/800
|
LZ9/700
|
LZ10/560
|
LZ10/400
|
|
Reel diameter
|
mm
|
900
|
800
|
700
|
560
|
400
|
|
Draw passage
|
time
|
9-12
|
10
|
9
|
10
|
10
|
|
Incoming dia
|
mm
|
Φ14-8
|
Φ10-8
|
Φ8-6.5
|
Φ6.5-5.5
|
Φ14-8
|
|
Outgoing dia
|
mm
|
Φ5-3
|
Φ4-3
|
Φ3-2.5
|
Φ2-1.8
|
Φ1-0.8
|
|
Wire darwing line
|
m/min
|
300
|
360
|
480
|
720
|
840
|
|
Incoming strength
|
Mpa
|
≤1300
|
≤1300
|
≤1300
|
≤1300
|
≤1300
|
|
Total compressibility
|
%
|
87.24-85.94
|
84-85.94
|
85.94-85.21
|
90.53-89.29
|
87.24-84
|
|
Average compressibility
|
%
|
20.48-19.58
|
18.42-19.58
|
19.58-19.13
|
21.00-20.02
|
18.61-16.74
|
|
Single motor power
|
Kw
|
110-90
|
90-55
|
75-55
|
37-22
|
15-7.5
|
Usage
It is widely used in mechanical manufacturing, metal processing, petrochemical, plastic, bamboo and wood products, wire and cable industries.
