Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Speed: | 110 M/min |
|---|---|---|---|
| Voltage: | 380 V | Product Name: | Galvanize Wire Straightening And Cutting Machine |
| Warranty: | 1 Year | After-sales: | Overseas Service Provided |
| High Light: | wire straightening and cutting machine,steel bar straightening and cutting machine |
||

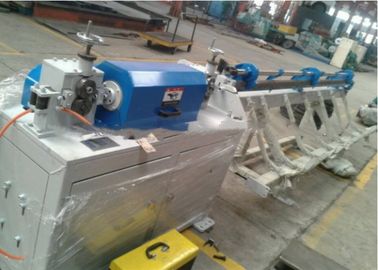

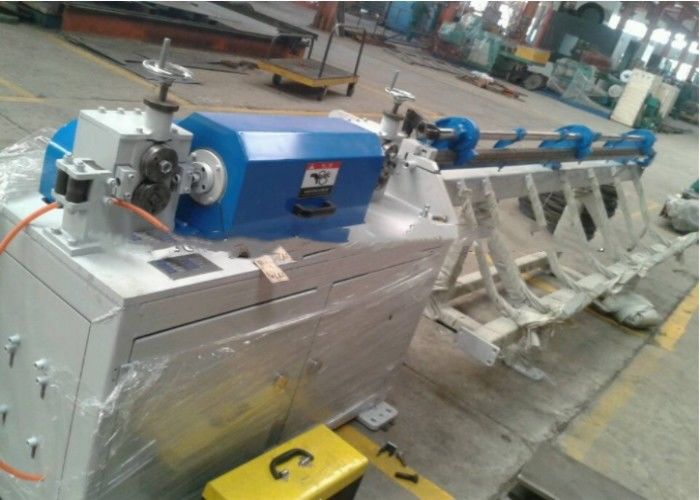

3 - 6 mm High Speed Galvanize Wire Straightening And Cutting Machine
description
This high speed wire sraightening and cutting machine
low carbon steel wire or galvanized wire and cut it into certain length.
We are intended to produce good quality products for our clients home and abroad. It is applied for wire 3~6mm and the length depends on
your requirement and wire diameter. It is easy to operate. In is one of our main products. It is used to straighten the following is the characteristics of our machine.
Features
1. High speed: this machine can reach high speed 110 m/min-3 or 4 times of the same kind machine of other companies.
2. Accurate cutting precision : this is the outstanding advantage of our machine and the tolerance of cutting length is ±1mm.
3. Accurate straightening precision: straightened wire precision is ≤2mm
4. Finished wire length can be as short as 0.5m and as long as 6m which is suitable for most wire mesh fence.
5. Easy operation: the machine is fully automatic and only one person is enough for operation.
6. Smooth working process: precise machine part and strict quality control making sooth working for long time.
parameters
|
Wire diameter |
3.0 ~ 6.0mm |
|
Cutting Length |
0.5~12m |
| Length precision |
≤±1mm |
| Straightening precision |
≤2mm |
| Straightening motor | 4KW |
|
Cutting motor |
1.1KW |
|
Power |
380V 50hz |
|
Speed |
110m/min |
Note: we can make wire straightening and cutting machine for different wire diameter and welded wire mesh machine for wire diameter 1.5~12mm.
SALES SERVICE
| 1. Machine to be installed and commissioned by our technicians. We can send our technician to install the machine accordingly if the buyer need. |
| 2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD100/person/day for salary. |
| 3. Technician: Normally need one or two technician. |
| 4 Training time: one week (contains the time of installation and adjustment) |
