Custom Straightening Wire Machine , 1 . 5 - 3mm High Speed Wire Straightening And Cutting Machine

I'm Online Chat Now

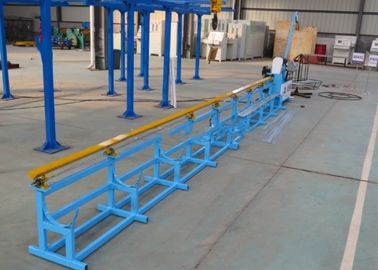

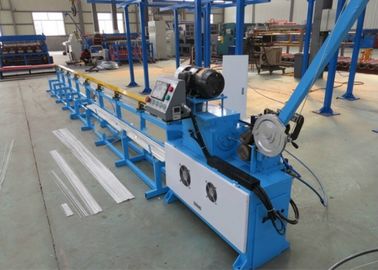

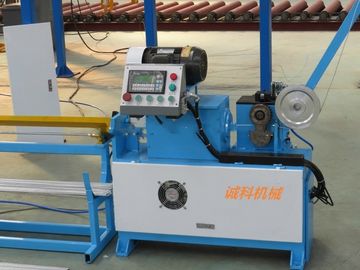

Custom Straightening Wire Machine , 1 . 5 - 3mm High Speed Wire Straightening And Cutting Machine

China Custom Straightening Wire Machine , 1 . 5 - 3mm High Speed Wire Straightening And Cutting Machine supplier
Custom Straightening Wire Machine , 1 . 5 - 3mm High Speed Wire Straightening And Cutting Machine supplier Custom Straightening Wire Machine , 1 . 5 - 3mm High Speed Wire Straightening And Cutting Machine supplier Custom Straightening Wire Machine , 1 . 5 - 3mm High Speed Wire Straightening And Cutting Machine supplier Custom Straightening Wire Machine , 1 . 5 - 3mm High Speed Wire Straightening And Cutting Machine supplier

Large Image :  Custom Straightening Wire Machine , 1 . 5 - 3mm High Speed Wire Straightening And Cutting Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-WS

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Condition: New Wire Length: 1.5-3M
STRAIGHTENING SPEED: 110times/min Cutting Thickness: 3-8MM
Warranty: 1 Year After-sales: Overseas Service Provided
High Light:

wire straightening and cutting machine

,

steel bar straightening and cutting machine

1 . 5 - 3mm High speed Steel Wire Straighten And Cutting Machine





description



Is the position of the roll and straightening products direction as a point of view, two or three big initiative pressure roller, driven by motor to rotate the same, on the other side of the several small roller is driven pressure roller, they are against the rotating round rod or pipe friction of rotating rolls for products to achieve the required compression, these small roller can adjust the position simultaneously or respectively forward or backward, generally, the more the number of roller straightening products products after the higher precision is the roll bite into, continuously make linear or rotary motion, thus make the products in terms of compression bending under flattening deformation, finally achieve the goal of straightening



Features



Before starting, check that the hydraulic station of hydraulic oil of reducer transmission case whether gear oil filling up before starting the main motor, the examination of the Angle adjustment and the hydraulic system working pressure all lubricating points into the lubricating oil, check the mechanical transmission part of the operation condition to make the shipment wear labor insurance supplies, flexible operating personnel shall not leave after boot string in the hydraulic station of hydraulic oil temperature after reaching stable, the straightening roll up to the initial position of artificial material, steel tube will be delivered after the third of straightening roller straightening roller pressure on the clamping to start the main motor, go round steel tube straightening machine stop at the same time, stop the straightening straightening roller, the straightening roll up, send for inversion of straightening straightening of steel pipe, can pass on the reversal of the knob, make the host inversion and reverse straightening main motor stop, stop the straightening straightening roller, the steel tube was returned to the starting position, to repeat the next stop after straightening procedure instruction, total power close, can not arbitrarily change the program controller



parameters





Power 4.2KW 17KW 34KW
Voltage 380V/440V/415V/220V
Model CK-1.5-3/3000-Q CK-3-6/3000-Q CK-5-12/12000-Q
Brand Name FZ
Place of Origin China Hebei China Hebei China Hebei
Usage Wire Wire Wire
Type Straightener&cutter
Wire Diameter 1.5-3mm 3-6mm 5-12mm
Cutting Length 3000mm 3000mm 12000mm
Cutting error ±1mm ±1mm ±1mm
Cutting Knife Material Alloy Alloy Alloy
Cutting Speed 100-130m/min 100-130m/min 90-130m/min
Control Mothod PLC
Wire Material Cold drawing wire and Galvanized wire
Color White and yellow White and yellow White and yellow
Straightness 2mm 2mm 2mm
Special Requirements Can be customized Can be customized Can be customized
