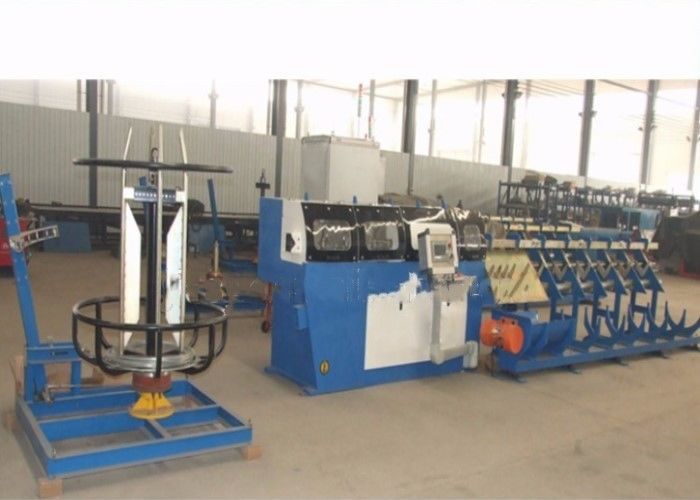

Automatic High Output Wire Rod Straightening Machine Low Power Consumption

I'm Online Chat Now

Automatic High Output Wire Rod Straightening Machine Low Power Consumption

China Automatic High Output Wire Rod Straightening Machine Low Power Consumption supplier
Automatic High Output Wire Rod Straightening Machine Low Power Consumption supplier Automatic High Output Wire Rod Straightening Machine Low Power Consumption supplier Automatic High Output Wire Rod Straightening Machine Low Power Consumption supplier Automatic High Output Wire Rod Straightening Machine Low Power Consumption supplier

Large Image :  Automatic High Output Wire Rod Straightening Machine Low Power Consumption

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-WS

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Works day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets
Contact Now
Detailed Product Description
Condition: New Wire Length: 0.8-12M
Color: 38m/min Cutting Thickness: 3-8MM
Warranty: 1 Year After-sales: Overseas Service Provided
High Light:

steel bar straightening and cutting machine

,

wire straightener and cutter

Wire Size 3 - 8mm Automatic Steel Wire Straighten And Cutting Machine





description

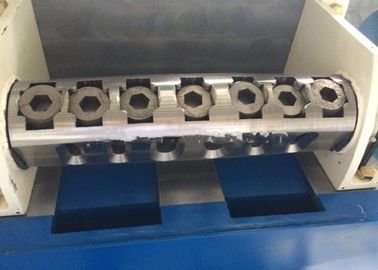

Straightening machine is for metal profile bar of tubing for straightening equipment such as wire straightening machine through the straightening roll extrusion of bar to the change of straightness typically have two rows of straightening roll number also has a two roll straightener, rely on two roll (middle concave, hyperbola roll) the Angle of the change on the materials of different diameter of main types of pressure straightening straightening machine balance roll straightener roll straightener shoes rotate reverse bending straightening machine and so on



Features



1. cut off the steel bar length without error,

2. double pull type,

3. The last mile of reinforcement pull out so far,

4 buildings adopt tungsten steel die,

5. Product wire the ball at the end of the mold, bring up will not damage the surface of steel



parameters





Power 4.2KW 17KW 34KW
Voltage 380V/440V/415V/220V
Model CK-1.5-3/3000-Q CK-3-6/3000-Q CK-5-12/12000-Q
Brand Name FZ
Place of Origin China Hebei China Hebei China Hebei
Usage Wire Wire Wire
Type Straightener&cutter
Wire Diameter 1.5-3mm 3-6mm 5-12mm
Cutting Length 3000mm 3000mm 12000mm
Cutting error ±1mm ±1mm ±1mm
Cutting Knife Material Alloy Alloy Alloy
Cutting Speed 100-130m/min 100-130m/min 90-130m/min
Control Mothod PLC
Wire Material Cold drawing wire and Galvanized wire
Color White and yellow White and yellow White and yellow
Straightness 2mm 2mm 2mm
Special Requirements Can be customized Can be customized Can be customized
