100 KVA Pneumatic Spot Welder , Pneumatic Water Cooling Point Welding Machine

I'm Online Chat Now

100 KVA Pneumatic Spot Welder , Pneumatic Water Cooling Point Welding Machine

China 100 KVA Pneumatic Spot Welder , Pneumatic Water Cooling Point Welding Machine supplier
100 KVA Pneumatic Spot Welder , Pneumatic Water Cooling Point Welding Machine supplier 100 KVA Pneumatic Spot Welder , Pneumatic Water Cooling Point Welding Machine supplier 100 KVA Pneumatic Spot Welder , Pneumatic Water Cooling Point Welding Machine supplier 100 KVA Pneumatic Spot Welder , Pneumatic Water Cooling Point Welding Machine supplier

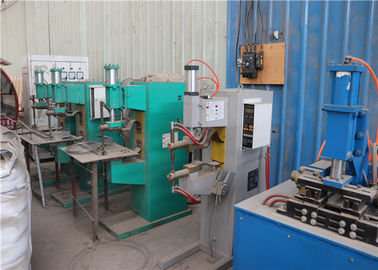

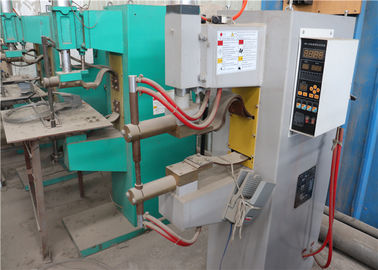

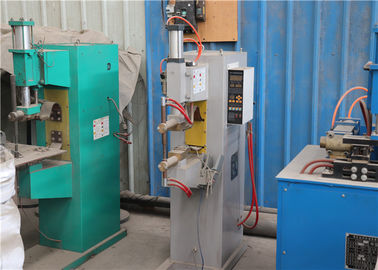

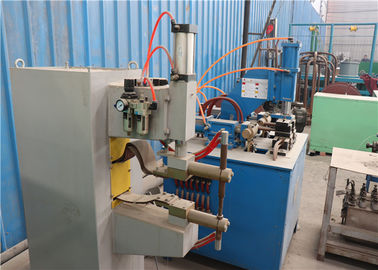

Large Image :  100 KVA Pneumatic Spot Welder , Pneumatic Water Cooling Point Welding Machine

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-SW-20Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Product Name: Pneumatic Spot Welding Machine Voltage: 380V
Warranty: 1 Year Condition: New
Color: Customer's Requirment After-sales: Overseas Service Provided

100 KVA Pneumatic Spot Welding Machine Used In High Quality Of Welding





description



Spot welding department USES double double flow principle of welding work two electrode pressure makes the two layers of metal workpiece under the pressure of two electrodes formed certain contact resistance, and the welding current from the electrode through another electrode formed in the two point contact resistance moment of hot melt, and the welding current moment from another electrode along the two artifacts flow so they form a loop, and will not hurt the internal structure of the welding workpieces



Features




a. Novel structure,special design and good regidity.With high precision guide structure,excellent wearability,piston rod pressure,fast welding speed and stable pressurizing.
b. The platform of projection welding is convenient for customers to install the fixture so that can weld from multi dimensional and multiple weldspots.
c. The microcomputer constant pressure control system,second section of the discharge,control the time and welding current accurately,convenient to adjust.
d. High permeability silicon steel sheets,secondary extensional organization,high output current,environmental protection.
e. Improve the life of equipment by using water transformer,water SCR,water electrode head.
f.  Widely used in high quality of welding,such as various line network class,basket,plate,hardwares,machine parts,auto parts,kitchen ware and so on.

(1) preloading electrode decreased to current through phase, to ensure that the electrode clamping workpiece, make appropriate pressure between the workpiece

(2) the welding current through the workpiece welding time, heat production formation of molten core

(3) keep time to cut off the welding current, electrode pressure to maintain nuclear solidification enough to melt strength electrode began to mention electrode

(4) the inactivity time again began to decline, begin the next welding cycle



Specification



Model CK-35 CK-63 CK-100
rate capacity 35KVA 63KVA 100KVA
rate voltage input 380V 380V 380V
rate frequency 50HZ 50HZ 50HZ
Max.short-cut current 15KA 19KA 27KA
Max.welding input 79KVA 139KVA 207KVA
Duty cyclce 15% 15% 15%
Arm dimension 200*420mm 220*420mm 220*420MM
Max.pressing force 2500N 3900N 6100N
Cylinder stroke 60mm 60mm 60mm
Consumer of cooling water ≥3.0L/min ≥3.5L/min ≥4L/min
Electrode head Φ13mm Φ16mm Φ20mm
Electrode holder Φ20mm Φ25mm Φ30mm
Electrode arm Φ44mm Φ49mm Φ59m
Welding ability 2mm+2mm 3mm+3mm 4mm+4mm
