Vertical Resistance Seam Welding Machine , Horizontal 380V 65KVA Sheet Metal Spot Welder

I'm Online Chat Now

Vertical Resistance Seam Welding Machine , Horizontal 380V 65KVA Sheet Metal Spot Welder

China Vertical Resistance Seam Welding Machine , Horizontal 380V 65KVA Sheet Metal Spot Welder supplier
Vertical Resistance Seam Welding Machine , Horizontal 380V 65KVA Sheet Metal Spot Welder supplier Vertical Resistance Seam Welding Machine , Horizontal 380V 65KVA Sheet Metal Spot Welder supplier Vertical Resistance Seam Welding Machine , Horizontal 380V 65KVA Sheet Metal Spot Welder supplier Vertical Resistance Seam Welding Machine , Horizontal 380V 65KVA Sheet Metal Spot Welder supplier

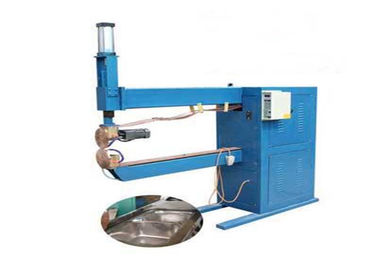

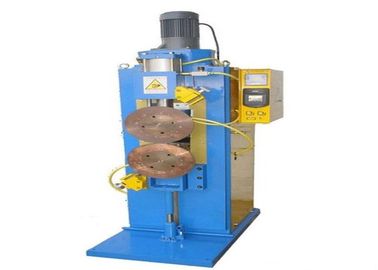

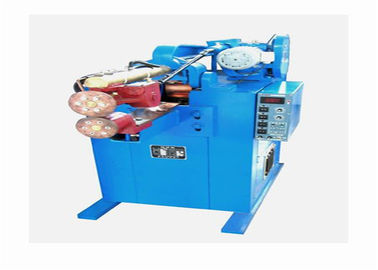

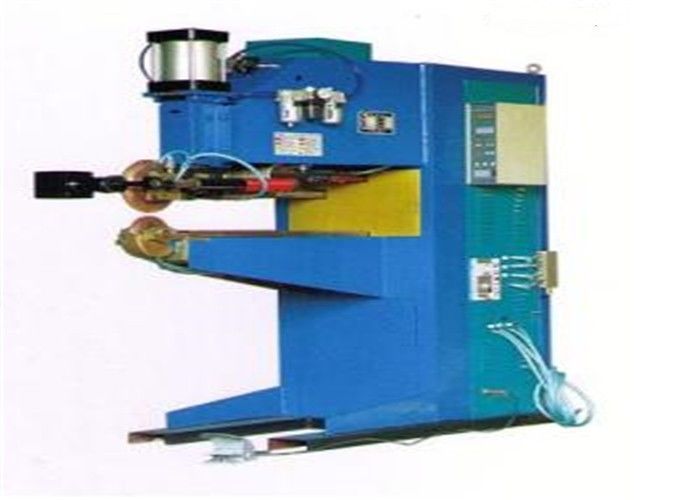

Large Image :  Vertical Resistance Seam Welding Machine , Horizontal 380V 65KVA Sheet Metal Spot Welder

Product Details:

Place of Origin: Heibei China
Brand Name: Chengke
Certification: ISO
Model Number: CK-SW-20Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: No
Delivery Time: 15 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets/Month
Contact Now
Detailed Product Description
Rated Capacity: 65KVA Voltage: 380V
Warranty: 1 Year Product Name: Resistance Seam Welding Machine
Condition: New After-sales: Overseas Service Provided
High Light:

pneumatic spot welding machine

,

water cooled spot welder

Resistance Seam Welding machine For can , tube , air duct and tank from metal sheet





description



Seam welder is refers to the welding assembly into lap or butt joint and placed between two electrodes of roller, roller pressure welding electrodes and the rotation, continuous or intermittent pulse transmission, forming a continuous weld resistance welding machine Also, so to speak, seam welding machine is a kind of evolution of the spot welding seam welding is widely used for sealing joint, and is also sometimes used for welding of ordinary the sealing sheet metal parts, is the thickness of the weld metal are usually in 0.1 ~ 2.5 mm



Features



(1) Novel structure, special design, good rigidity.

(2) Adopt the cylinder pressurizing, easy and exact to adjust.

(3) Adopt the microcomputer crosscurrent control, the welding time and current can be exact to controled.

(4) Welder has two kinds of welding method,namely vertical / horizontal



Specification



Model NO. CK-35 CK-50 CK-75 CK-100 CK-150
Rated primary voltage 380V 380V 380V 380V 380V
Rated capacity 35KVA 50KVA 75KVA 100KVA 150KVA
Rated primary current 95A 135A 200A 265A 400A
Secondary no load voltage 5.3V 6.0V 6.3V 7.0V 7.5V
Adjust method electrodeless adjust
Duty cycle 50% 50% 50% 50% 50%
Max. welding thickness(mm) 0.5+0.5 0.8+0.8 1.0+1.0 1.2+1.2 1.5+1.5
Max. force electrodes 3000N 3000N 4700N 6100N 10000N



Use


The seam welder is widely used in the tank of the cans of oil drums and the gas tank, as well as the thin plates of the sealed container in the jet engine rocket



advantages


1. Punctual: Have your orders met with the latest delivery?

We are a manufacturer with so many advanced and new machines.

It ensures we have the ability to carry out the production schedual for punctual delivery.

2. 17-year production experience. We have over 17 years exprerience in this industry.

That means we can preview the problems for the orders and production.

Therefore, it will make sure to deduce the risk of bad situation to happen.
