Product Details:
Payment & Shipping Terms:
|
| Rated Capacity: | 65KVA | Voltage: | 380V |
|---|---|---|---|
| Warranty: | 1 Year | Product Name: | Rolling Seam Welding Machine |
| Speed Of Welding: | 0.5-3m | After-sales: | Overseas Service Provided |
| High Light: | pneumatic spot welding machine,water cooled spot welder |
||

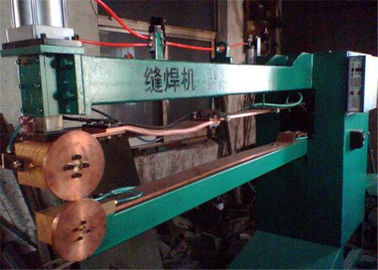

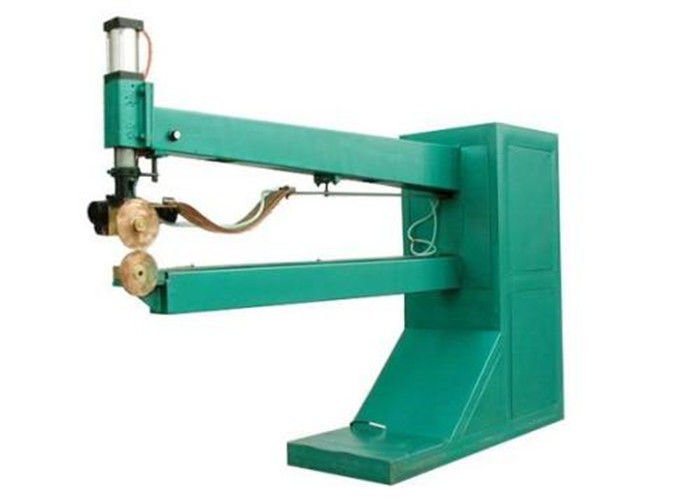

Rolling Seam Welding Machine For Radiator , Fuel Tank , Solar Water Heater Tank
description
Seam welder is refers to the welding assembly into lap or butt joint and placed between two electrodes of roller, roller pressure welding electrodes and the rotation, continuous or intermittent pulse transmission, forming a continuous weld resistance welding machine Also, so to speak, seam welding machine is a kind of evolution of the spot welding seam welding is widely used for sealing joint, and is also sometimes used for welding of ordinary the sealing sheet metal parts, is the thickness of the weld metal are usually in 0.1 ~ 2.5 mm
Features
1. Cross sea longitudinal seam and horizontal and vertical seam.
2. The speed of welding is quick and the efficiency of welding is high.
3. According to the clients' demand, set the function of continuous weld and pulse weld.
4. Equipped with a high reliability control box
5. The welding speed can be regulated continuously.
6. Suitable for the site for welding airproof vesse
Specification
| Item Type | CK-35 | CK-55 | CK-75 | CK-100 |
| Rated input capacity | 35KVA | 55KVA | 75KVA | 100KVA |
| Rated input voltage | 1-38V/50HZ | 1-380V/50HZ | 1-380V/50HZ | 3-380V/50HZ |
| Rated load cycle | 50% | 50% | 50% | 50% |
| Max.input capacity | 45KVA | 55KVA | 75KVA | 110KVA |
| Max.short circuit current | 6200A | 11000A | 16000A | 26000A |
| Max.pressure of electrode | 400KGF | 600KGF | 1000KGF | 1000KGF |
| The flow of cooling water | 6L/min | 6L/min | 8L/min | 8L/min |
| Arm length | 600mm | 600mm | 600mm | 600mm |
| Electrode journey | 80mm | 80mm | 80mm | 80mm |
| Speed of welding | 0.5-3m/min | 0.5-3m/min | 0.5-3m/min | 0.5-3m/min |
Use
The seam welder is widely used in the tank of the cans of oil drums and the gas tank, as well as the thin plates of the sealed container in the jet engine rocket
