Product Details:
Payment & Shipping Terms:
|
| Rated Capacity: | 65KVA | Voltage: | 380V |
|---|---|---|---|
| Warranty: | 1 Year | Product Name: | High Frequency Long Arm Pneumatic Spot Welding Machine |
| Color: | Customer's Requirment | After-sales: | Overseas Service Provided |
| High Light: | pneumatic spot welding machine,resistance spot welding equipment |
||

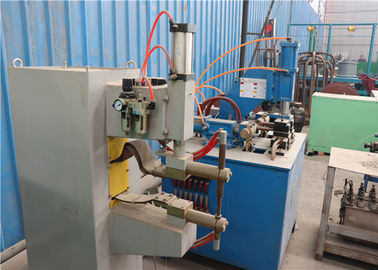

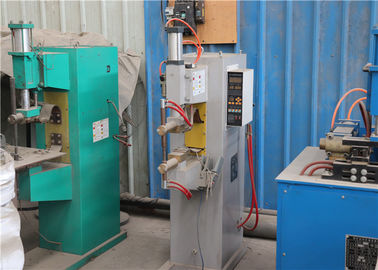

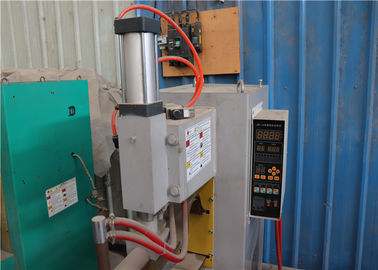

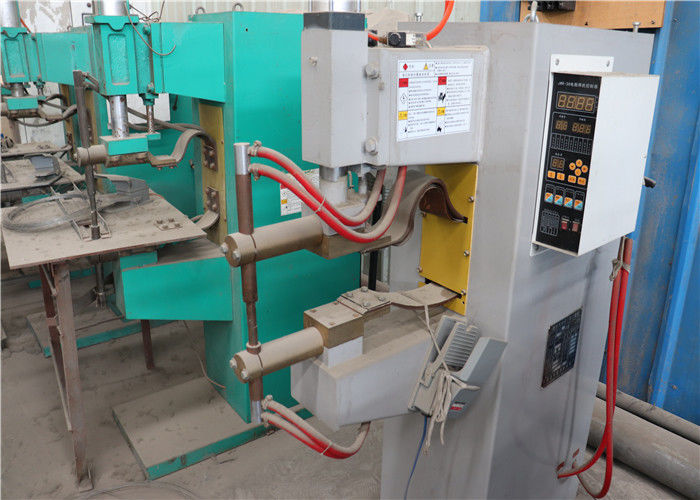

High Frequency Long Arm Pneumatic Spot Welding Machine Saving Energy
description
Spot welding department USES double double flow principle of welding work two electrode pressure makes the two layers of metal workpiece under the pressure of two electrodes formed certain contact resistance, and the welding current from the electrode through another electrode formed in the two point contact resistance moment of hot melt, and the welding current moment from another electrode along the two artifacts flow so they form a loop, and will not hurt the internal structure of the welding workpieces
Features
(1) preloading electrode decreased to current through phase, to ensure that the electrode clamping workpiece, make appropriate pressure between the workpiece
(2) the welding current through the workpiece welding time, heat production formation of molten core
(3) keep time to cut off the welding current, electrode pressure to maintain nuclear solidification enough to melt strength electrode began to mention electrode
(4) the inactivity time again began to decline, begin the next welding cycle
Specification
| Model | CK-35 | CK-63 | CK-100 |
| rate capacity | 35KVA | 63KVA | 100KVA |
| rate voltage input | 380V | 380V | 380V |
| rate frequency | 50HZ | 50HZ | 50HZ |
| Max.short-cut current | 15KA | 19KA | 27KA |
| Max.welding input | 79KVA | 139KVA | 207KVA |
| Duty cyclce | 15% | 15% | 15% |
| Arm dimension | 200*420mm | 220*420mm | 220*420MM |
| Max.pressing force | 2500N | 3900N | 6100N |
| Cylinder stroke | 60mm | 60mm | 60mm |
| Consumer of cooling water | ≥3.0L/min | ≥3.5L/min | ≥4L/min |
| Electrode head | Φ13mm | Φ16mm | Φ20mm |
| Electrode holder | Φ20mm | Φ25mm | Φ30mm |
| Electrode arm | Φ44mm | Φ49mm | Φ59m |
| Welding ability | 2mm+2mm | 3mm+3mm | 4mm+4mm |
Use
Welding machine assembly of the appropriate electrode form and controller, to meet a variety of wire mesh basket products, steel mesh, pipe products such as processing and manufacturing. Can be carbon steel, stainless steel, galvanized steel and a variety of non-ferrous metal wire, pipe, sheet, screw and other spot welding and row welding.
advantages
1. Punctual: Have your orders met with the latest delivery?
We are a manufacturer with so many advanced and new machines.
It ensures we have the ability to carry out the production schedual for punctual delivery.
2. 17-year production experience. We have over 17 years exprerience in this industry.
That means we can preview the problems for the orders and production.
Therefore, it will make sure to deduce the risk of bad situation to happen.
